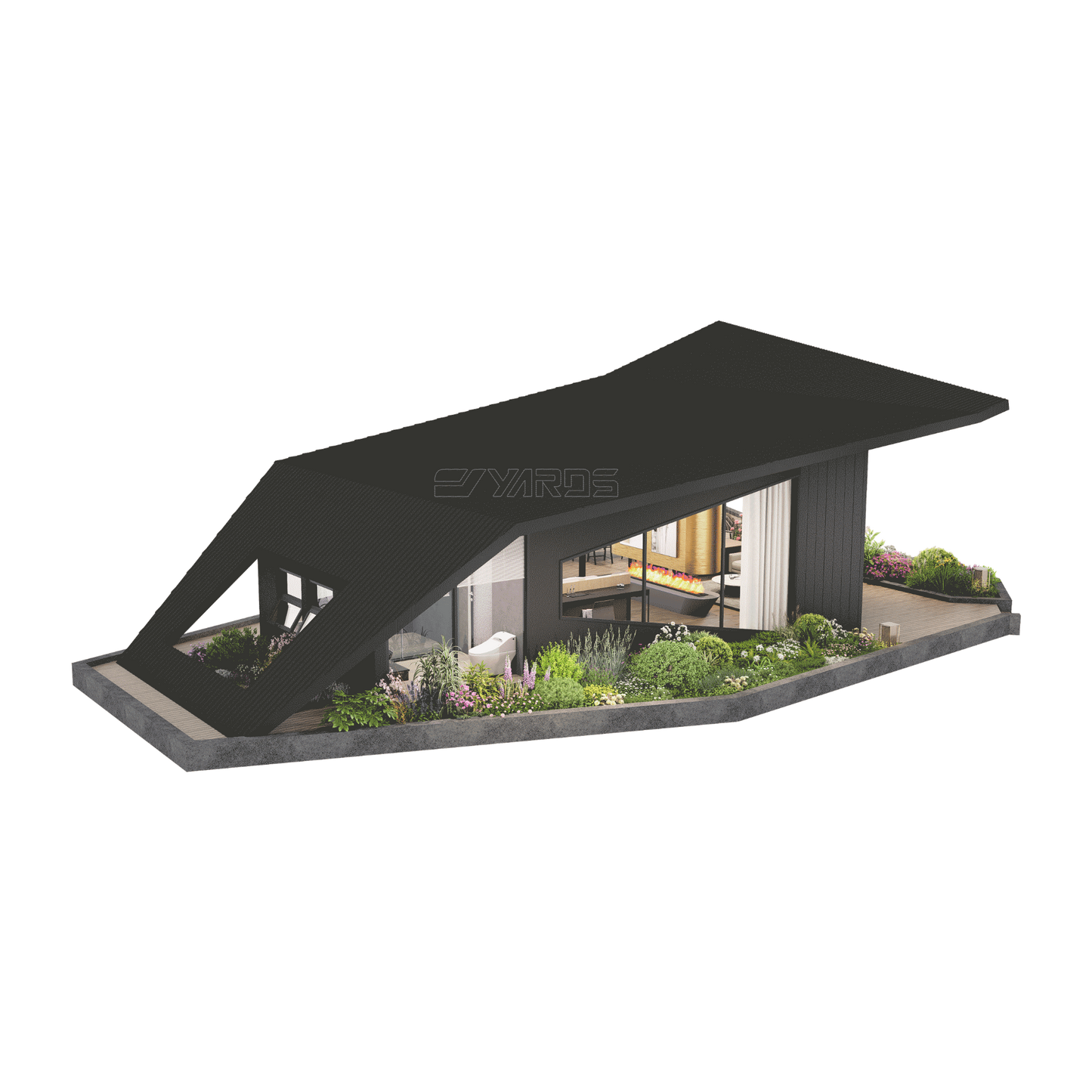

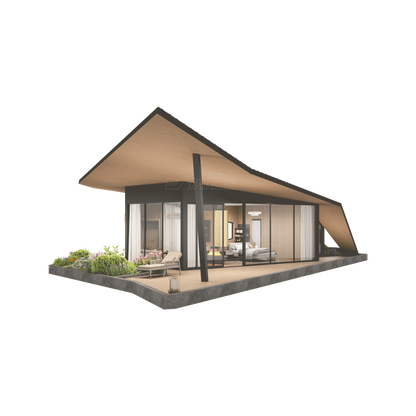

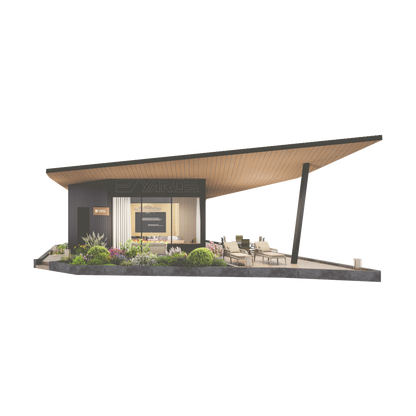

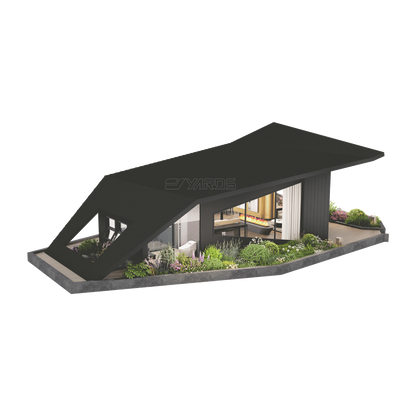

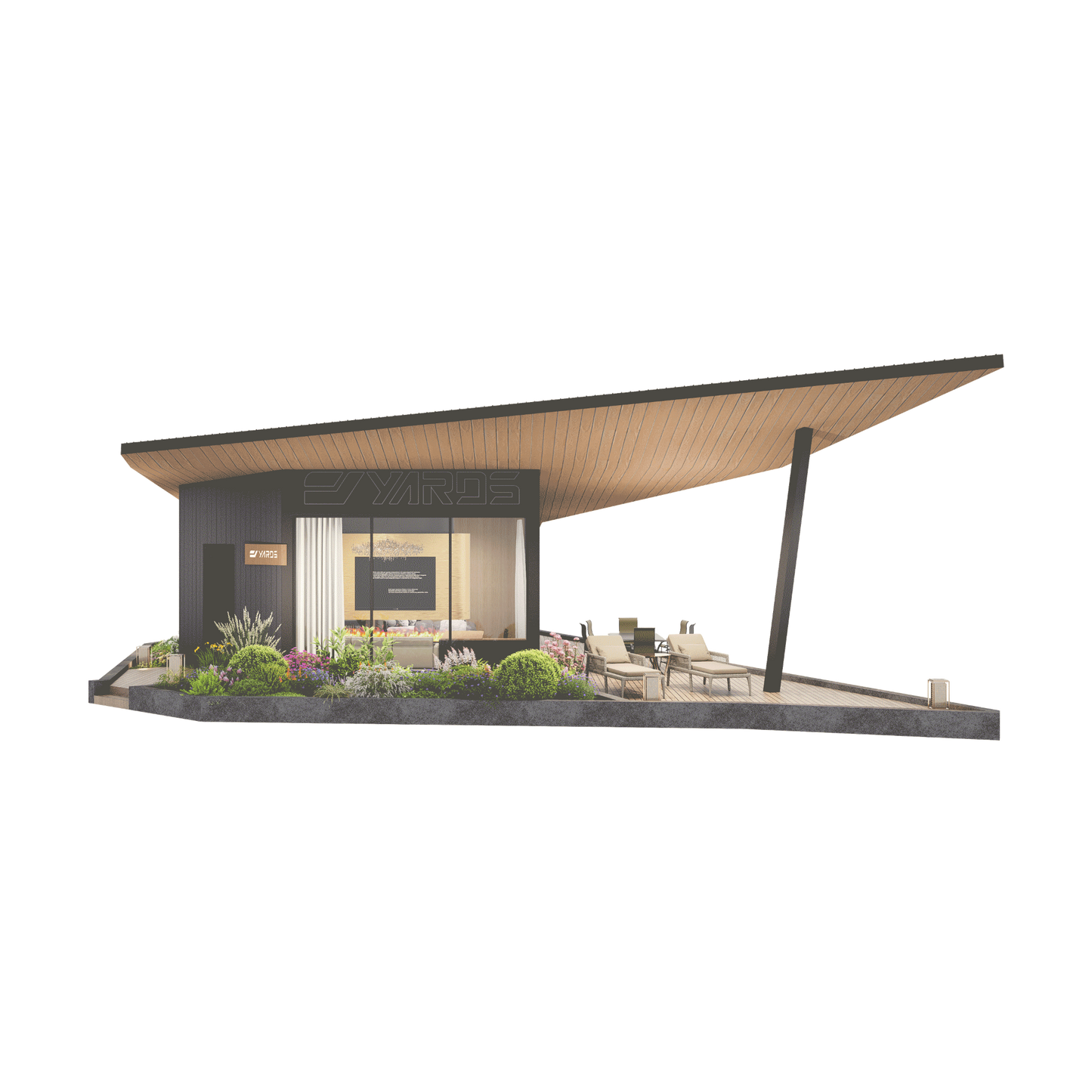

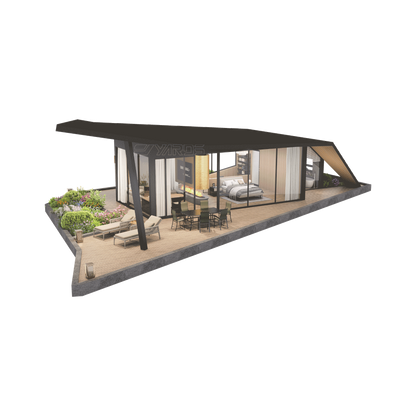

FS Luxury Tiny House With XL Terrace

FS Tiny House

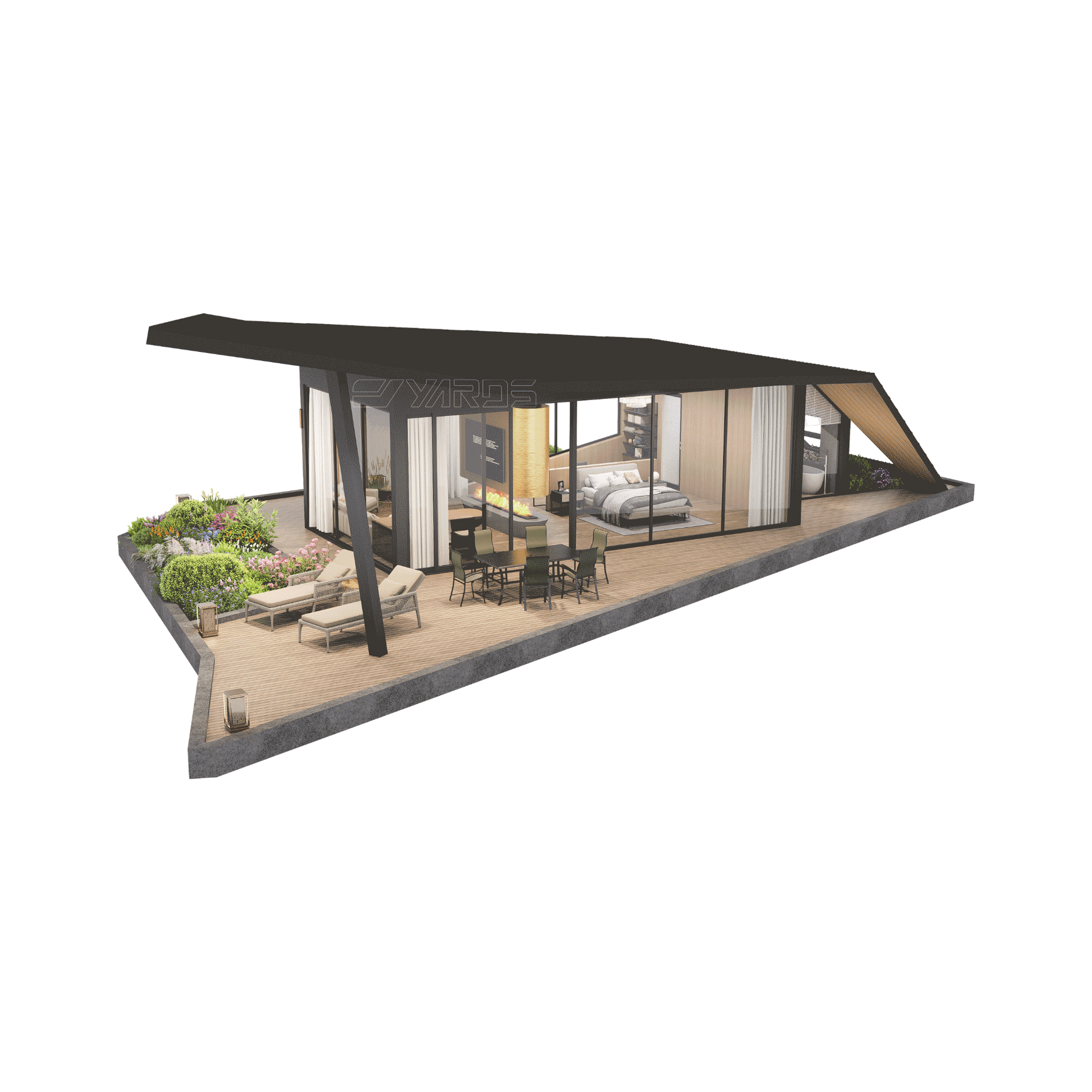

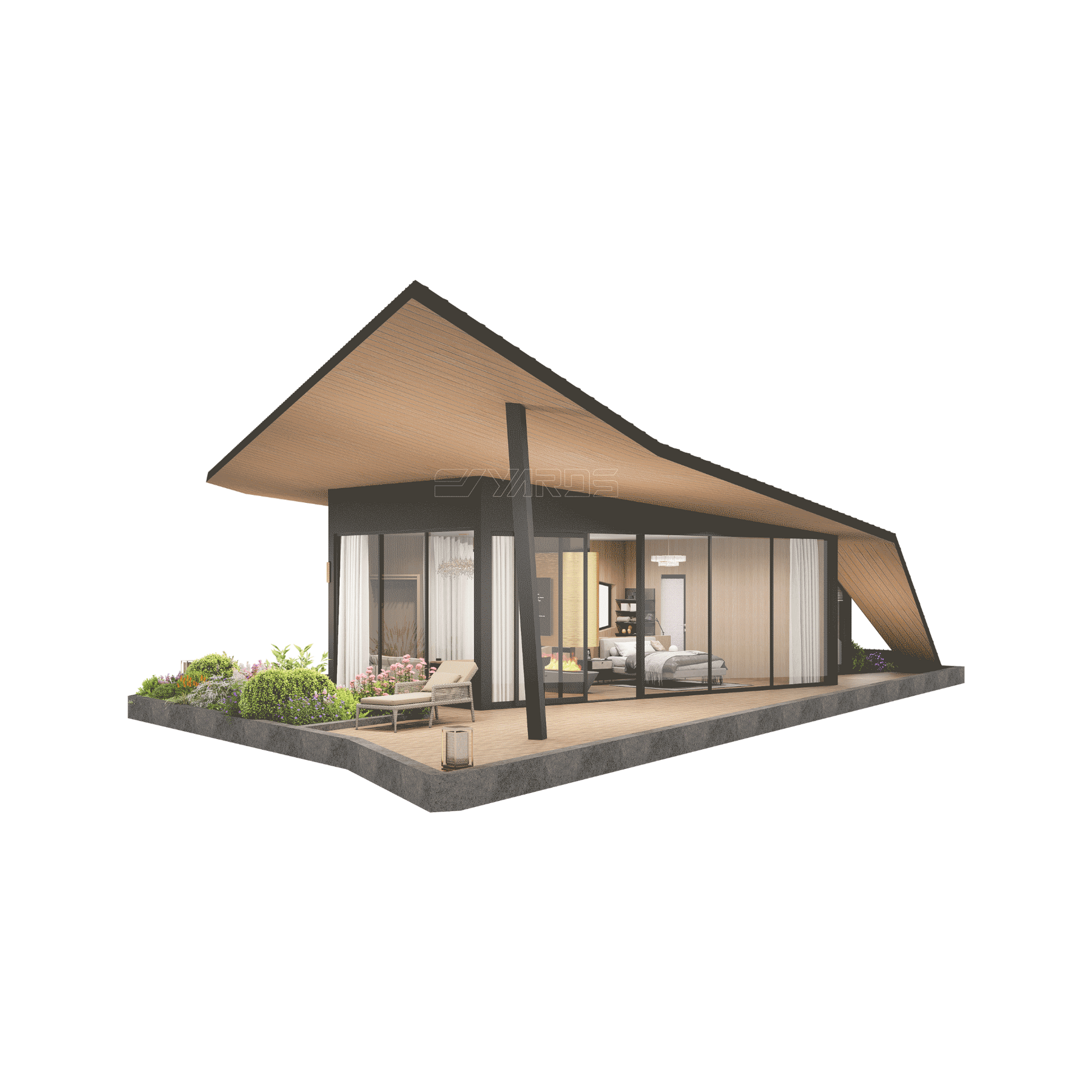

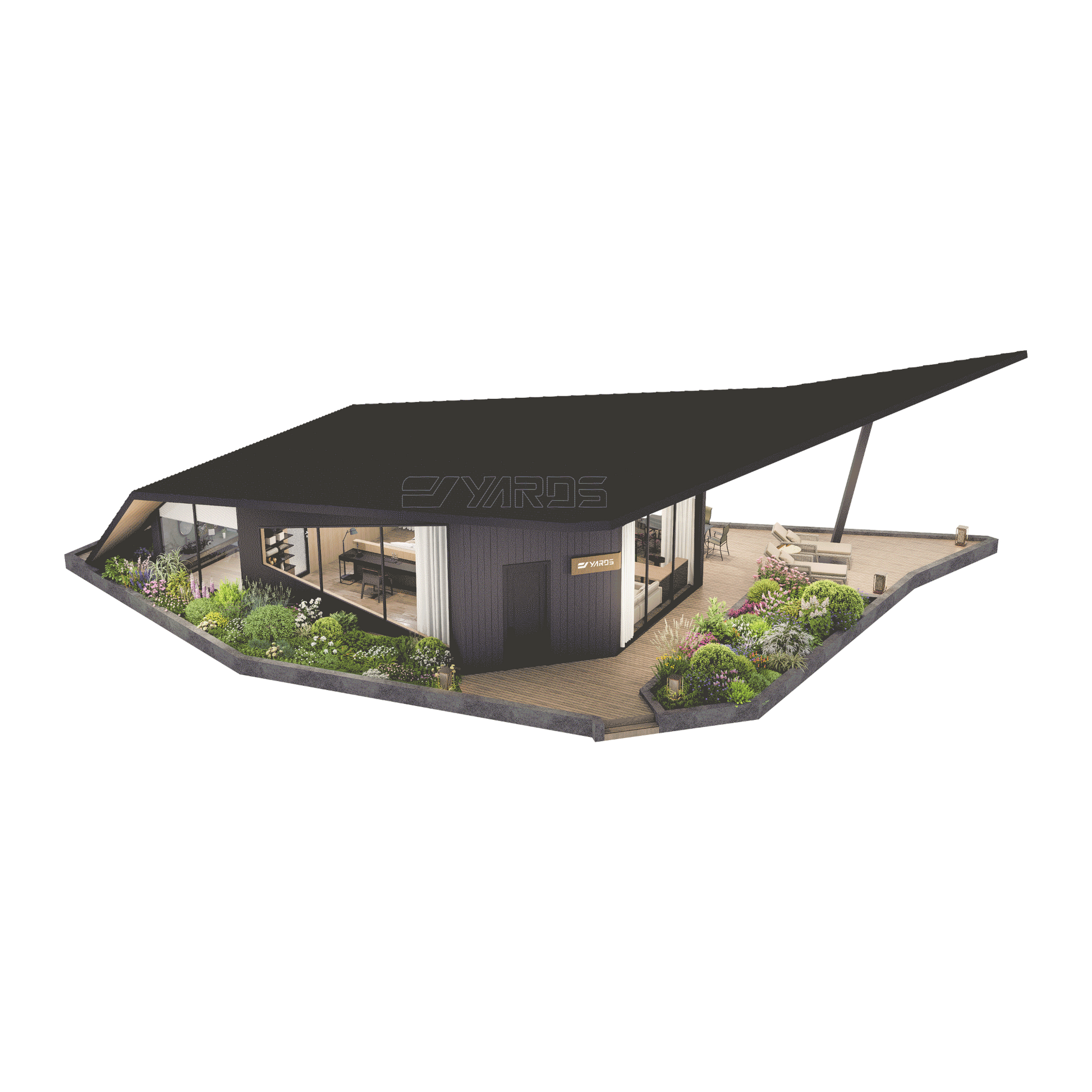

The FS Luxury Tiny House is a resort level one bedroom modular home designed for guests who want generous indoor comfort and a very large outdoor terrace. With a bedroom, full bathroom, open living room and kitchen, plus an expansive deck, the FS works perfectly as a flagship unit for eco resorts, glamping sites, or private retreats.

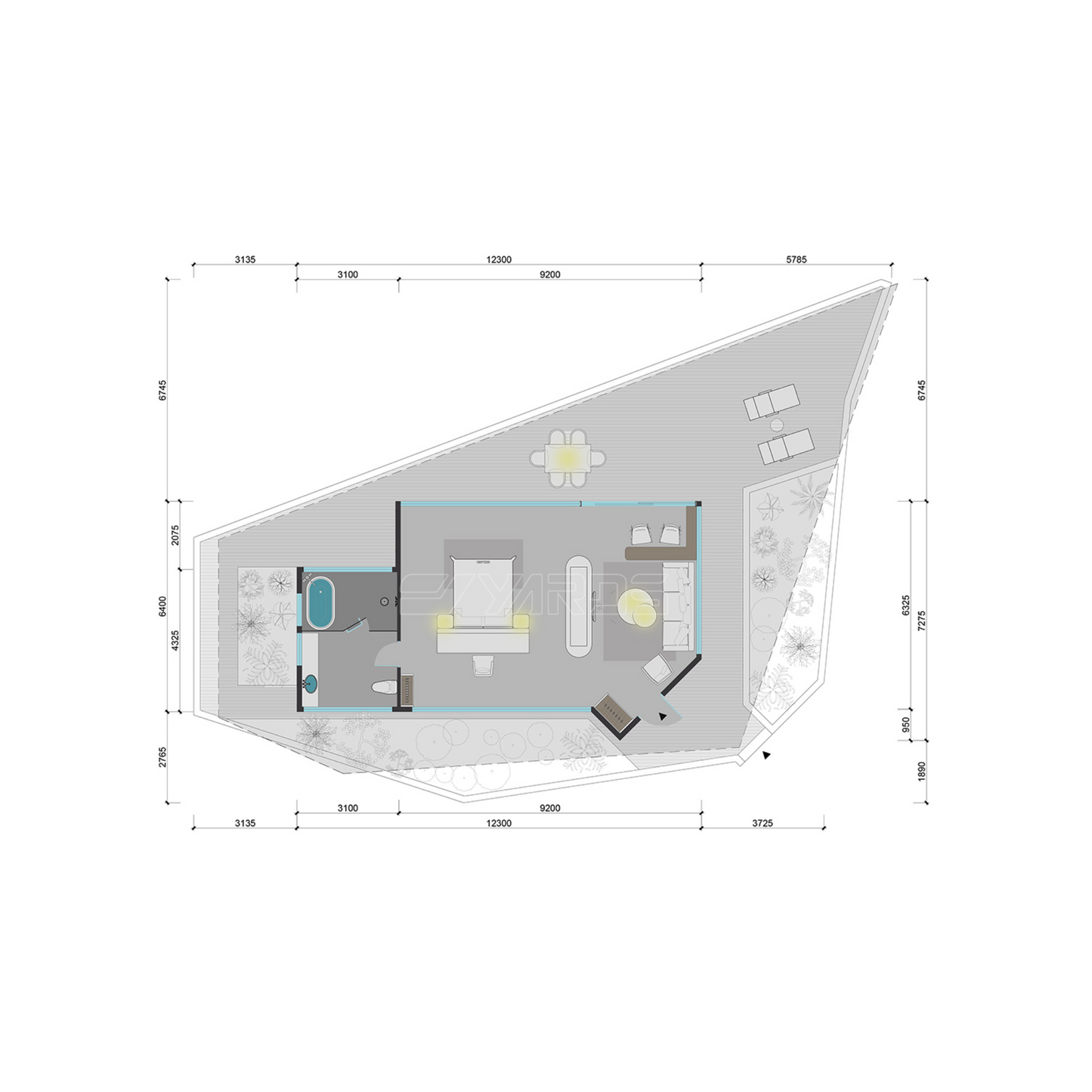

The main footprint is approximately 69 ft x 46 ft (21 m x 14 m). The enclosed interior is about 775 ft² (72 m²) and the terrace adds roughly 1,475 ft² (137 m²) of outdoor living space. High ceilings up to about 12.1 ft (3.7 m) inside create a bright, villa-like feel.

What Is Included

The FS is delivered as a finished structural unit with integrated systems and factory installed interior and exterior materials.

Structural System

• 100 mm x 100 mm x 5 mm hot dip galvanized steel main frame
• Aluminum magnesium manganese roofing system with waterproof and thermal insulation filling
• Prefabricated insulated wall system, approx. 4 to 6 in (10 to 15 cm) thick for thermal and acoustic comfort
• Structural materials in steel and aluminum alloy for high strength and corrosion resistance

Aluminum alloy combines low weight and excellent corrosion resistance with higher strength and toughness than pure aluminum, which makes it ideal for high end modular units in demanding climates.

Interior and Exterior Finishes

• SPC waterproof interior flooring
• Red cedar solid wood wall panels on selected surfaces (optional PVC veneer available from the manufacturer)
• Carbon crystal wall panels with modeling ceiling details
• Aluminum composite panel interior walls in selected areas
• Aluminum insulating glass doors and windows
• Exterior wall material options: 2 mm aluminum alloy panels with fluorocarbon coating, Cedar wood panels, WPS (wood plastic composite) boards
• Insulated glass curtain wall, specification 5 / 20A / 5

Included Functional Systems

• Air conditioning system
• Plumbing system with factory pre installed piping to bathroom and kitchen
• Electrical and lighting system with installed fixtures
• Branded bathroom set, typically including: Toilet, Shower, Sink and vanity
• Kitchen zone ready for appliances, with sink area and service points
• Sound insulation performance of approximately 30 dB

Specifications

Not Included

• Interior loose furniture such as bed, sofa, tables, chairs, and decor
• Outdoor furnishings shown on the terrace, such as lounge seating, pergolas, hot tubs, and landscaping
• Kitchen appliances and custom cabinetry finishes unless otherwise specified in your final order

Images are for illustration only and may show optional layouts and furniture packages. Final delivered configuration depends on your selected options and project requirements.

Optional Add Ons

(Contact us to customize your order.)

• Deck and terrace layout packages for lounge, dining, spa or pool concepts
• Interior layout adjustments and partition tweaks within the one bedroom configuration

Optional Upgrades

(Available upon request from the manufacturer.)

• Fresh air and ventilation system
• Electric underfloor heating
• Whole house soft furnishings and furniture package
• Intelligent theater and media system
• Whole house smart home system

These upgrades allow you to position the FS anywhere from a premium couple’s retreat to a fully equipped luxury villa style glamping suite.

Installation and Platform Notes

FS units are designed as modular structures that can be installed on either a reinforced concrete slab or an engineered wooden platform, depending on site conditions and local regulations. We recommend sourcing platforms and foundations locally to reduce shipping costs and to meet local building standards.
Please note:

• Installation services are not included in the base price.
• Detailed structural drawings and connection information are provided, and we recommend hiring experienced local builders or contractors to complete the foundation and installation.
• Customers are responsible for arranging suitable lifting equipment or a forklift at the delivery site to safely unload the house modules.
