HX168 Lodge Tent
The HX168 Multi-functional Lodge Tent blends style and utility, making it an excellent choice for versatile outdoor living. Whether you need a luxurious private retreat or a multifunctional service space, this tent offers durability and sophistication to suit your needs.
This robust tent provides comfort, safety, and elegance, designed to meet international wind resistance and moisture resistance standards while being suitable for various climates.
What’s in the Standard Package:
- Structure: Galvanized steel cabin frame structure
- Structural Connections: Anti-rust bolted steel plate connection system
-
Roof: Double-layer roof system: 31 oz/yd² (1050 gsm) PVDF membrane outer roof
+ 25.1 oz/yd²(850 gsm) Oxford inner layer - Walls: Insulated Oxford canvas walls
- Entrance: Glass sliding door
- Windows: Canvas all-zip window (with flyscreen)
Luxury Package Option:
- Walls: Fully enclosed framed facades with glassor composite wall panels
- Windows: Insulated Glass & Solid Walls include openable glass windows
Specifications
| Feature | Details |
|---|---|
| Commercial Capacity | Up to 40 guests |
| Total Area | 2420 ft² ( 225 m²) |
| Inside Area | 1,810 ft² (168 m²) |
| Outdoor Deck Area | 540 ft² (50 m²) |
| External Footprint | 49.2 ft x 49.2 ft (15 m x15 m) |
| Indoor Dimensions | 42.5 ft x 42.5 ft (13 m x 13 m) |
| External Height | 17 ft (5.2 m) |
| Indoor Height | 9.2 ft (2.8 m) |
| Doors | 4 |
| Opening Windows | 8 |
| Wind Resistance | Level 10 (60mph) |
| Roof Load Capacity | 5 lbs/ft² (25 kg/m²) |
| Temperature Range | -22°F to 122°F (-30°C to 50°C) |
| Lifespan | Approx. 15 years |
Footprint and geometry can be customized based on site and regulatory requirements.

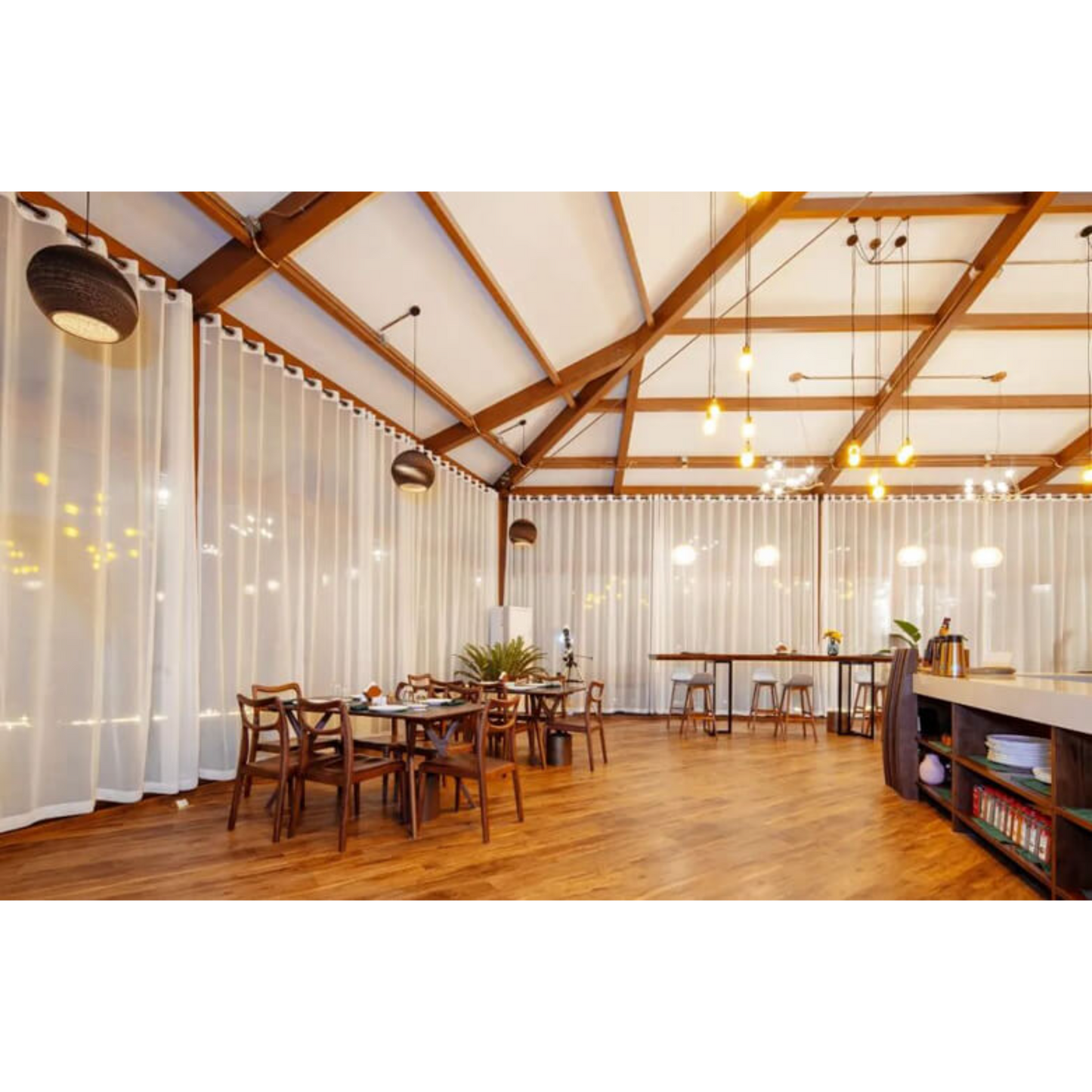

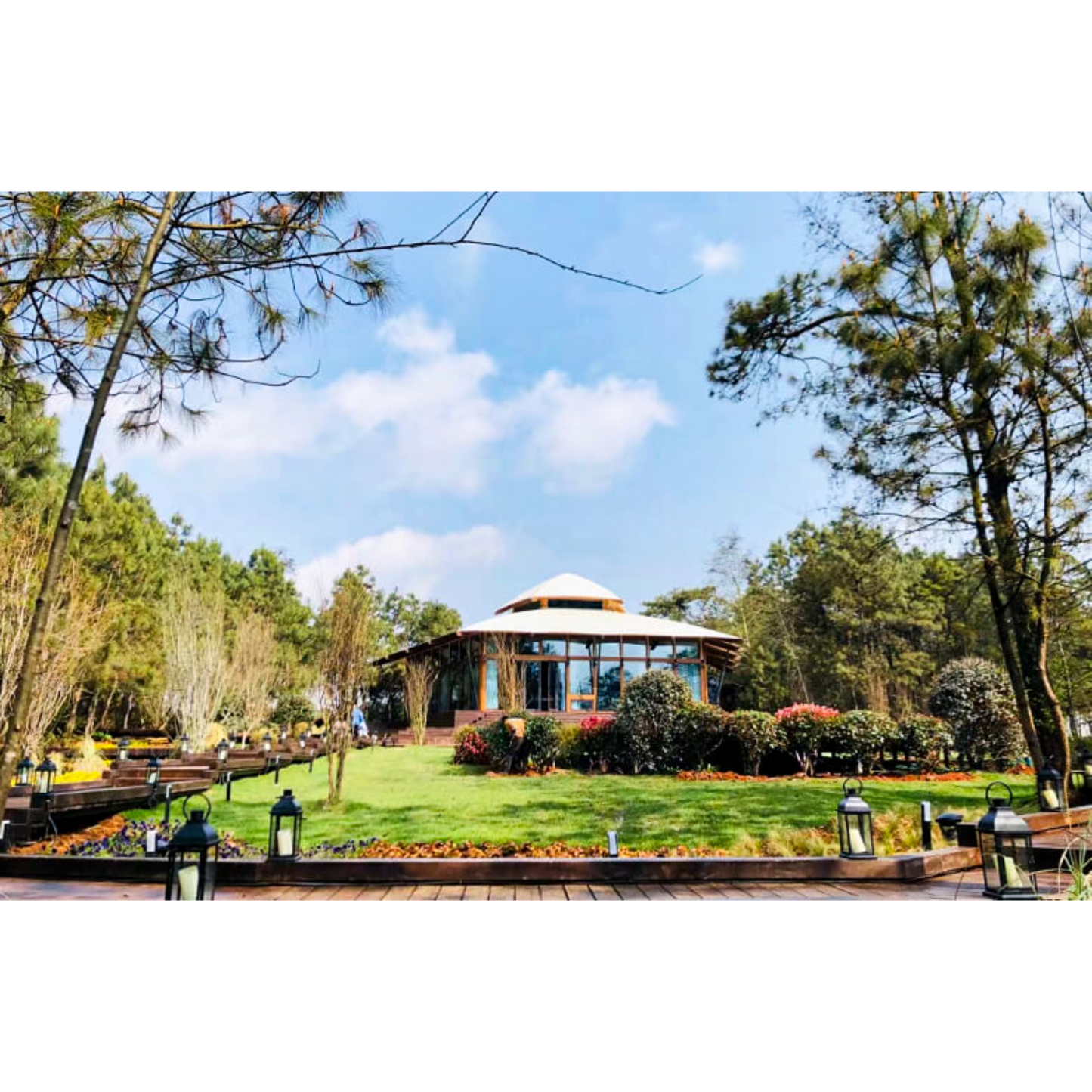

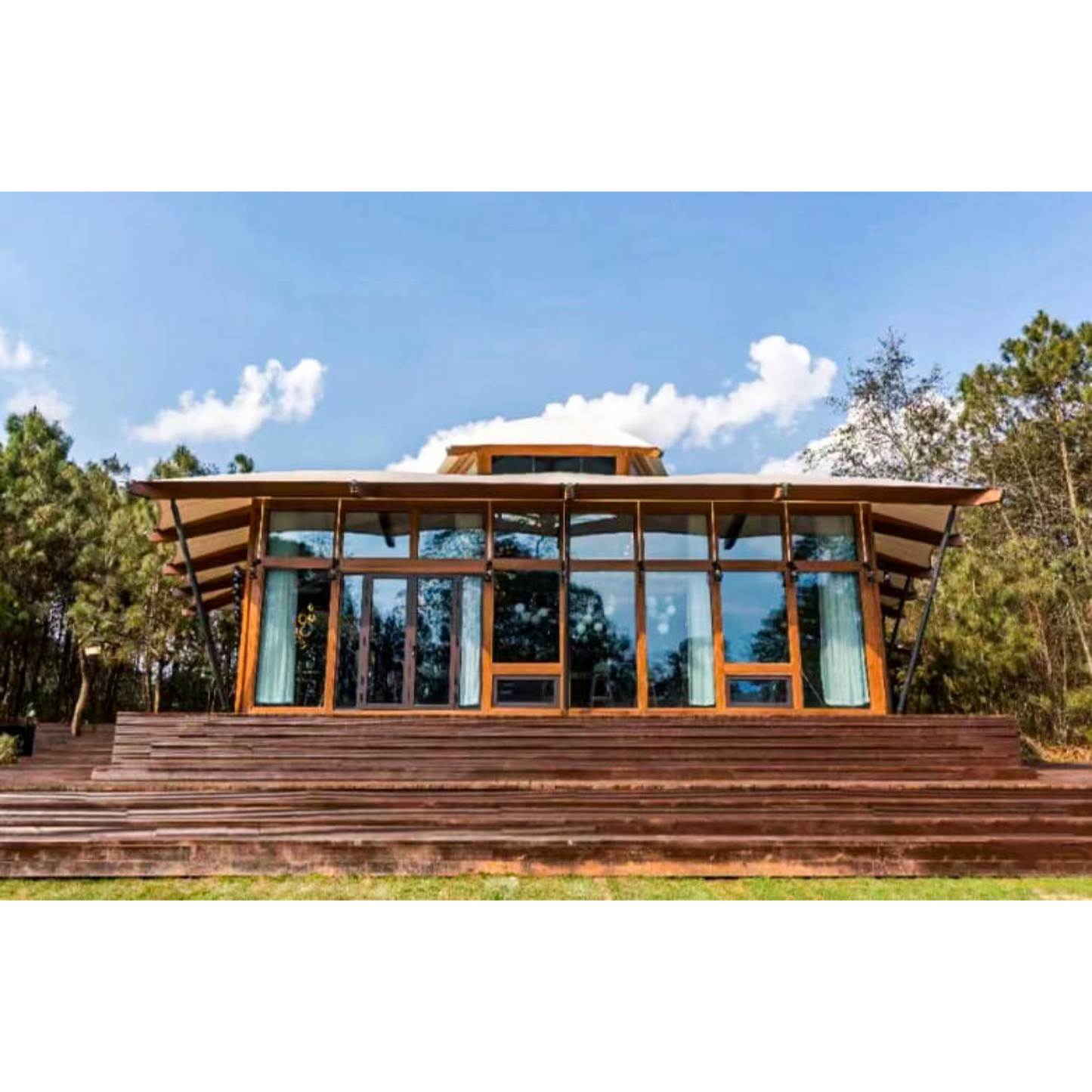

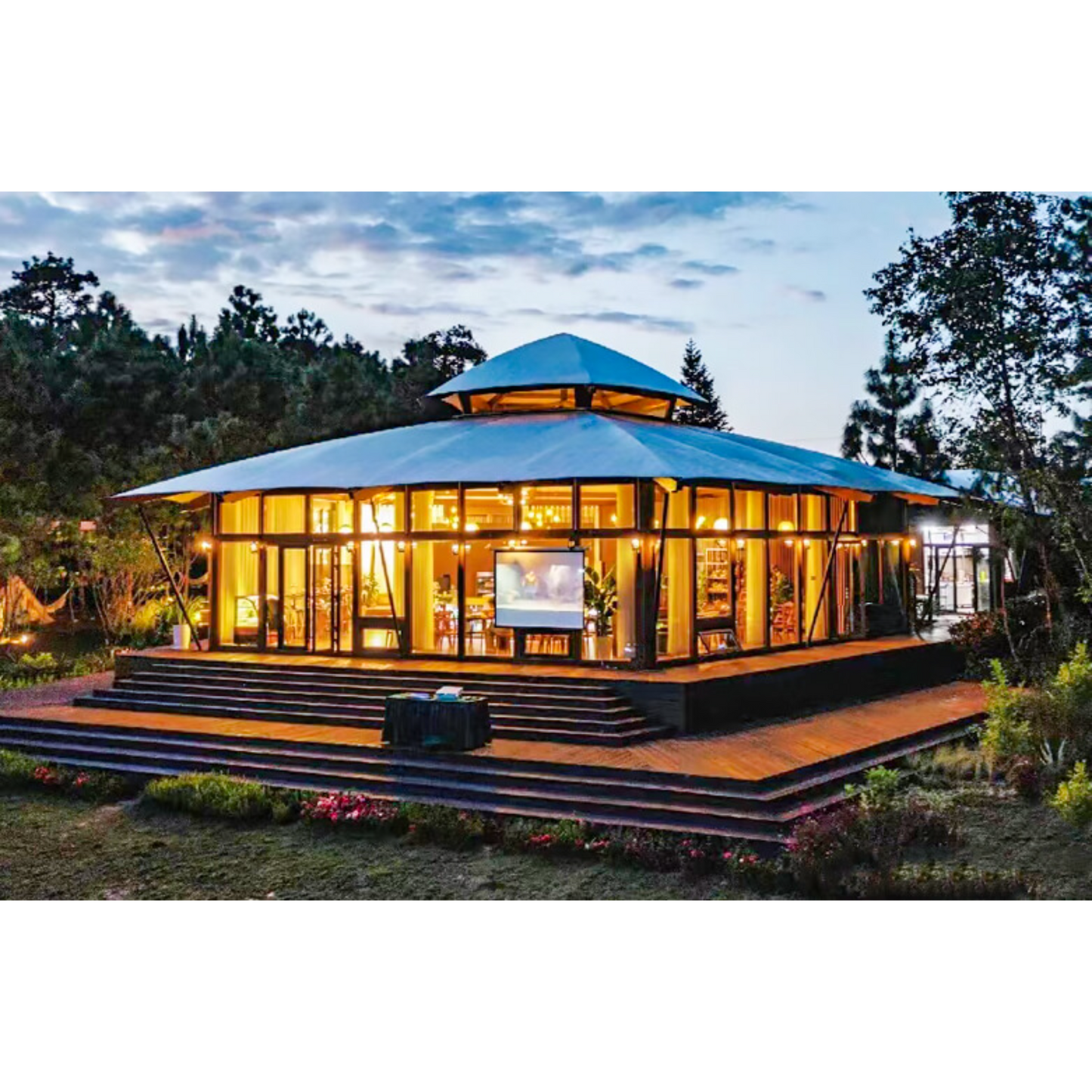

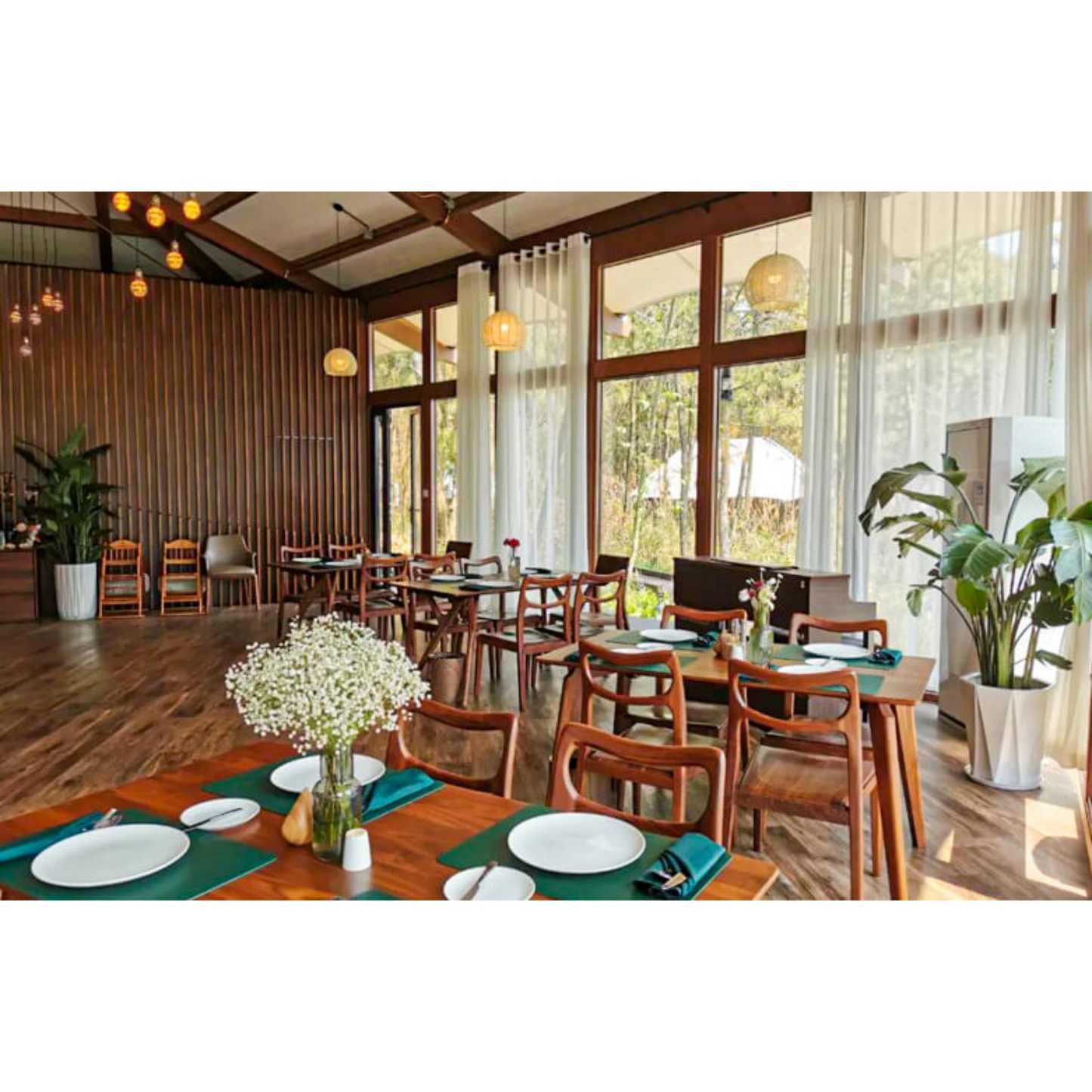

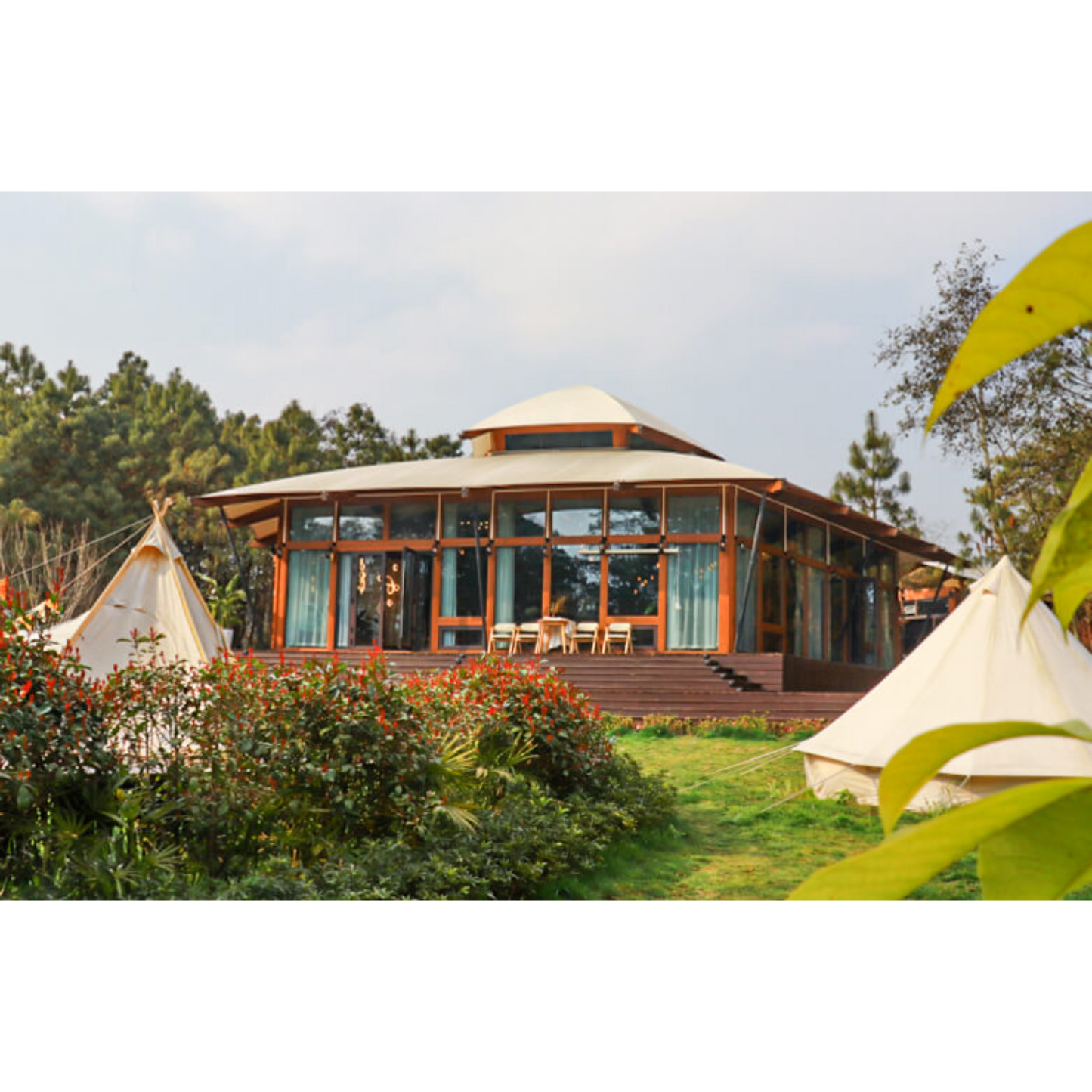

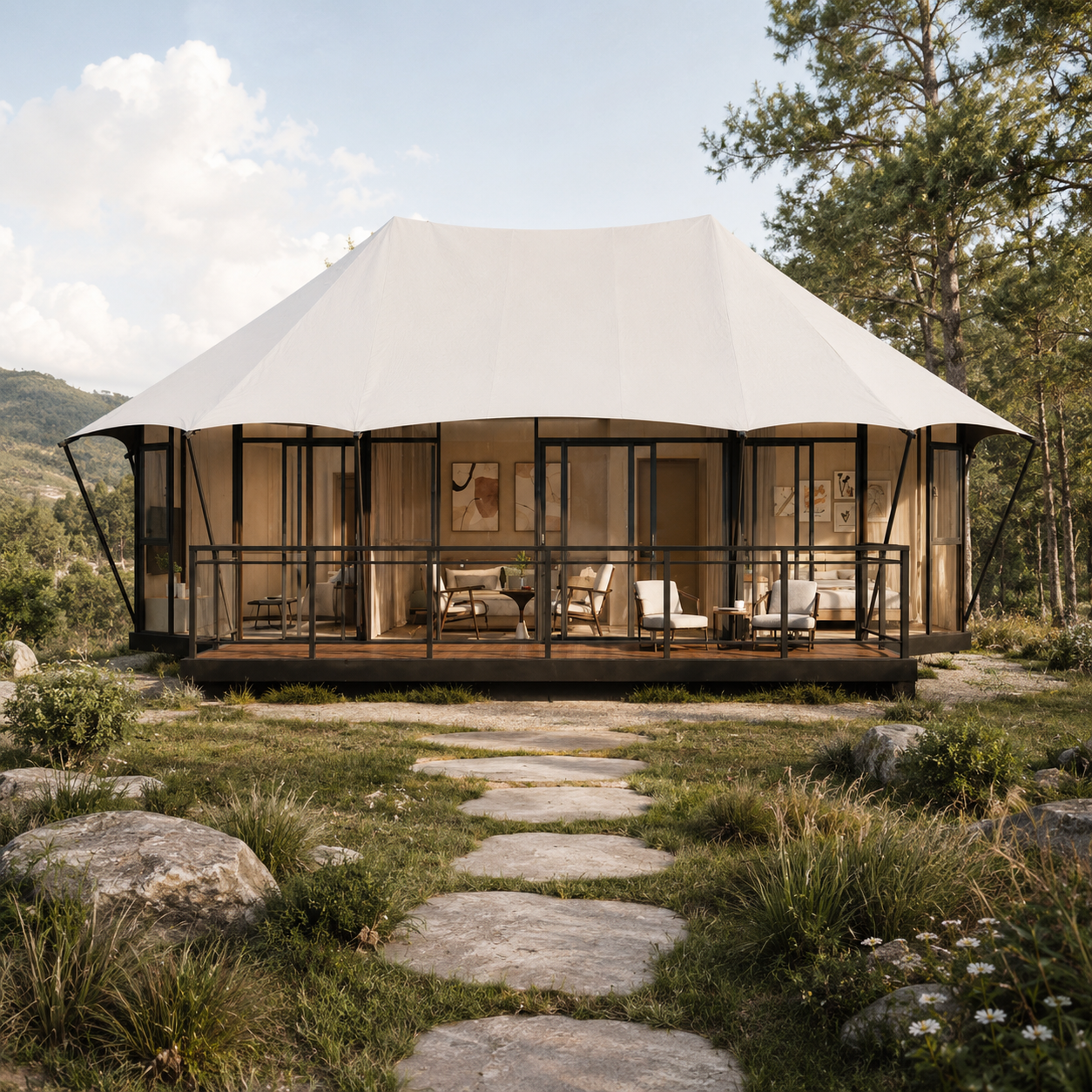

The HX168 is a customizable steel-frame lodge structure. Interior finishes, facade treatments, and visual detailing may vary depending on configuration and project requirements. Images shown represent example installations and conceptual renderings.
Not Included:
Interior furniture, wood platforms and flooring systems, or partition walls shown in sample images.
Optional Add-Ons (Contact us to customize your order):
- Platform and Flooring: Wooden platform and flooring systems
- Bathroom and Kitchenette installation options
- Interior Partitions and Layout: Partition walls and customizable floorplan configurations
The furniture and floorplans shown in images are for illustration purposes. Interior configurations can be custom-designed based on project needs.
Installation and Platform Notes
Tents can be installed on either a wooden platform or cement base. We recommend sourcing platforms locally to reduce shipping costs. Please note, we do not provide installation services. Clear setup instructions are included. We recommend hiring local builders or carpenters for assembly.
Customers are responsible for arranging a forklift at the delivery site to unload the tent materials.
-
Free Shipping
Enjoy free shipping on all glamping tents delivered anywhere in the U.S. (Free shipping excludes forklift unloading cost).
-
Made-to-Order
Every tent is made-to-order and can be customized to fit your project`s needs. Production + Delivery: 2-3 months
-
Warranty
All glamping tents are backed by a 1-year manufacturer`s warranty for peace of mind.
-
