L36 Luxury Tiny House

L36 Tiny House

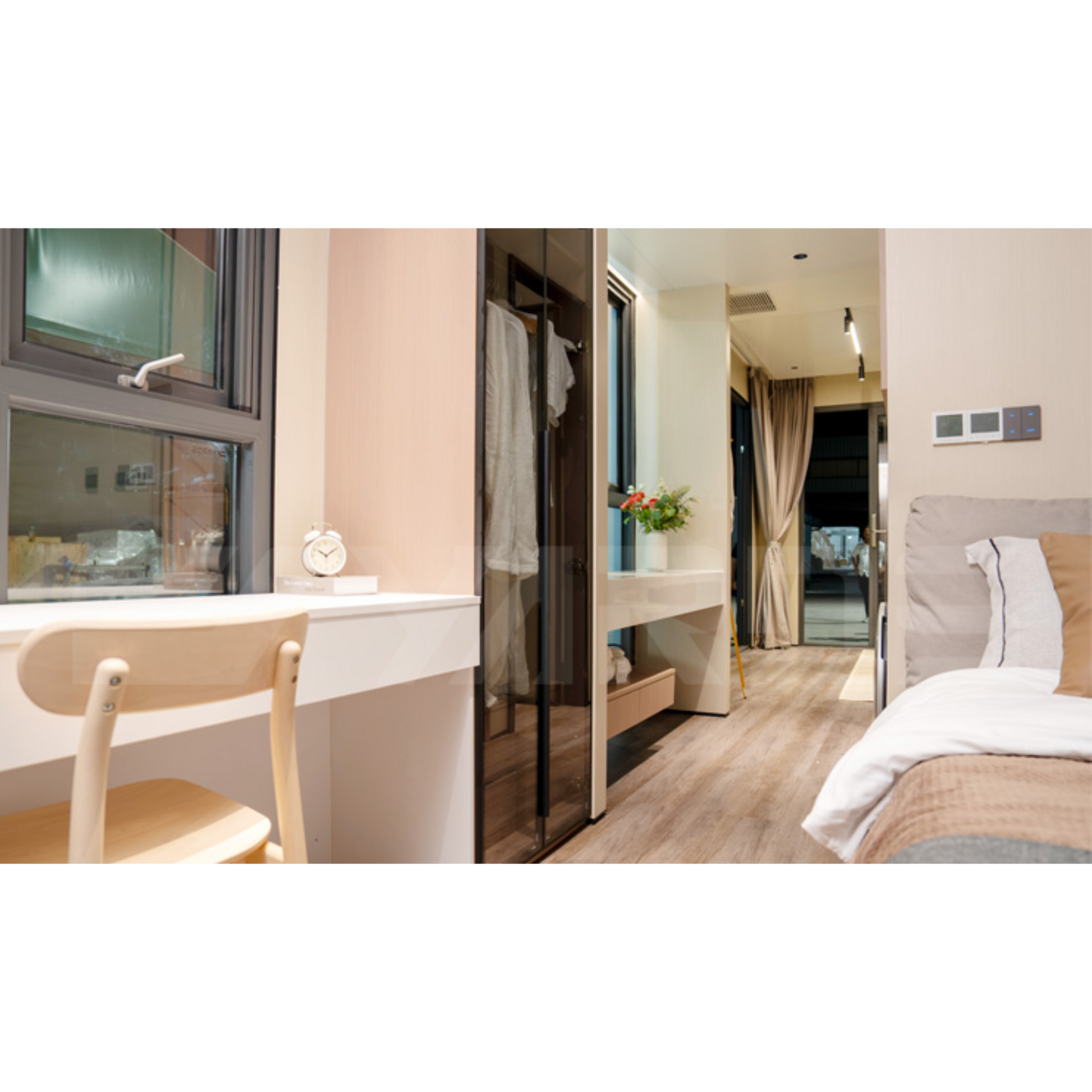

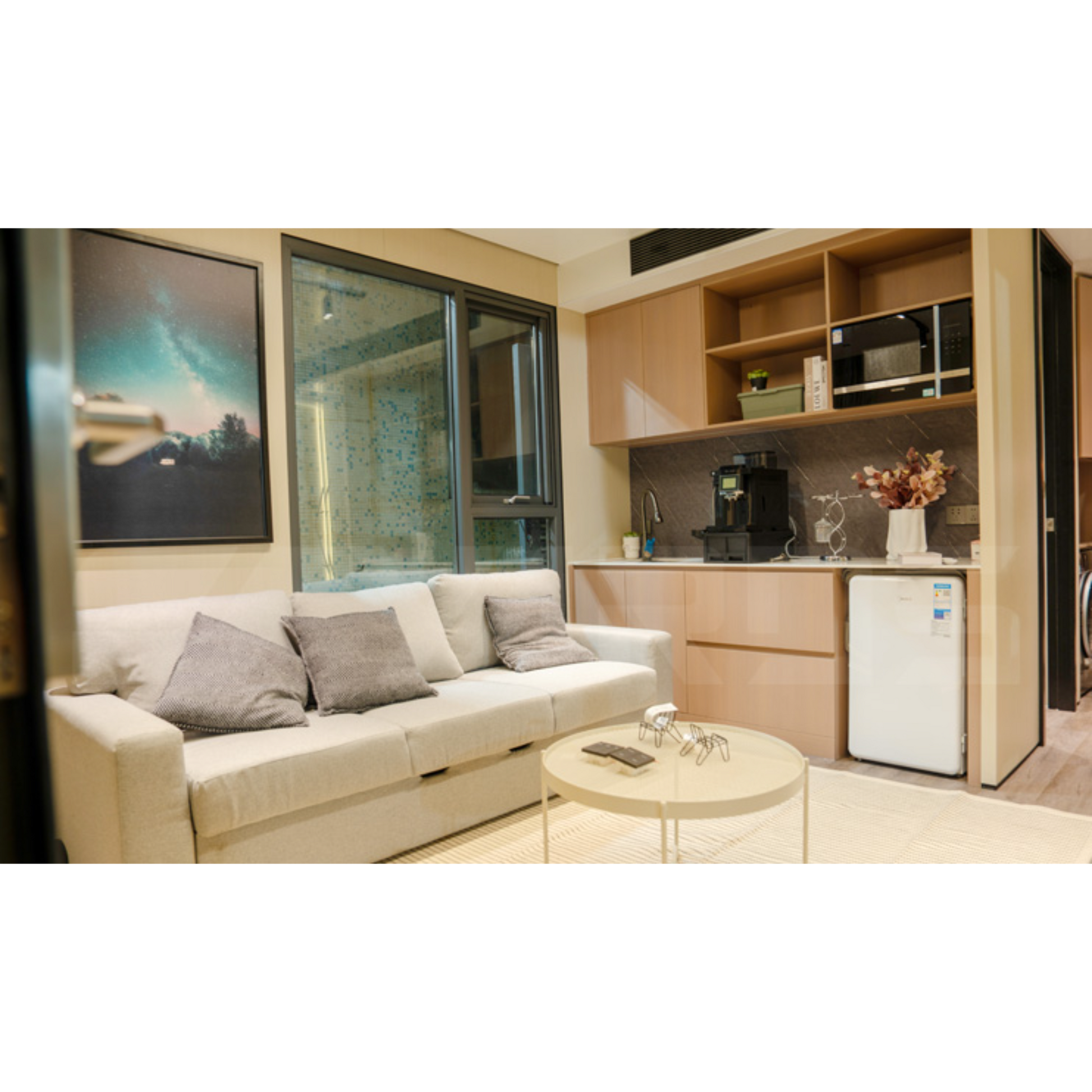

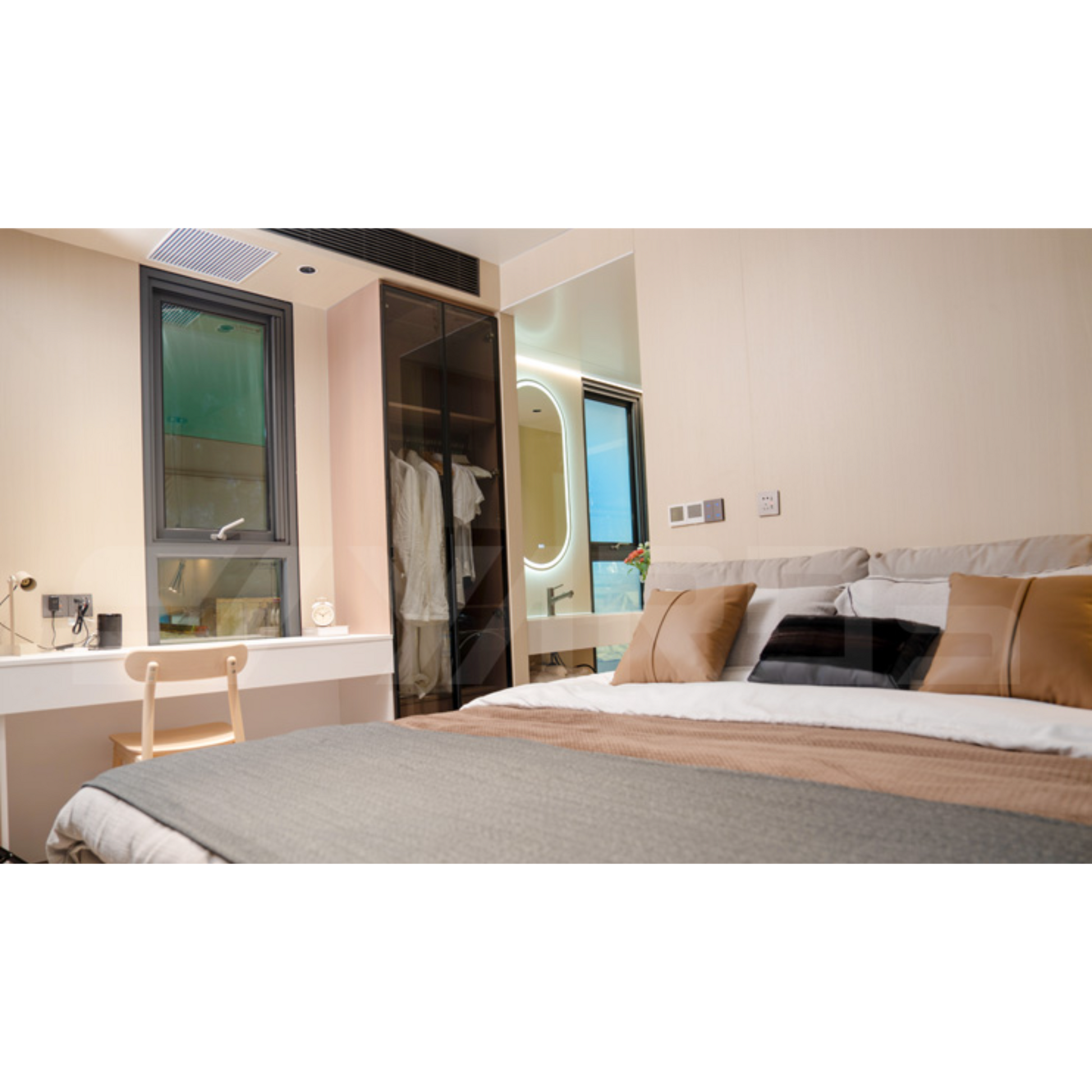

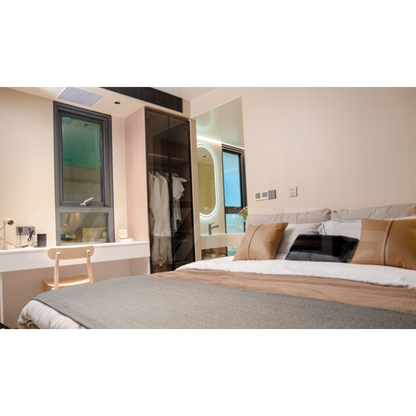

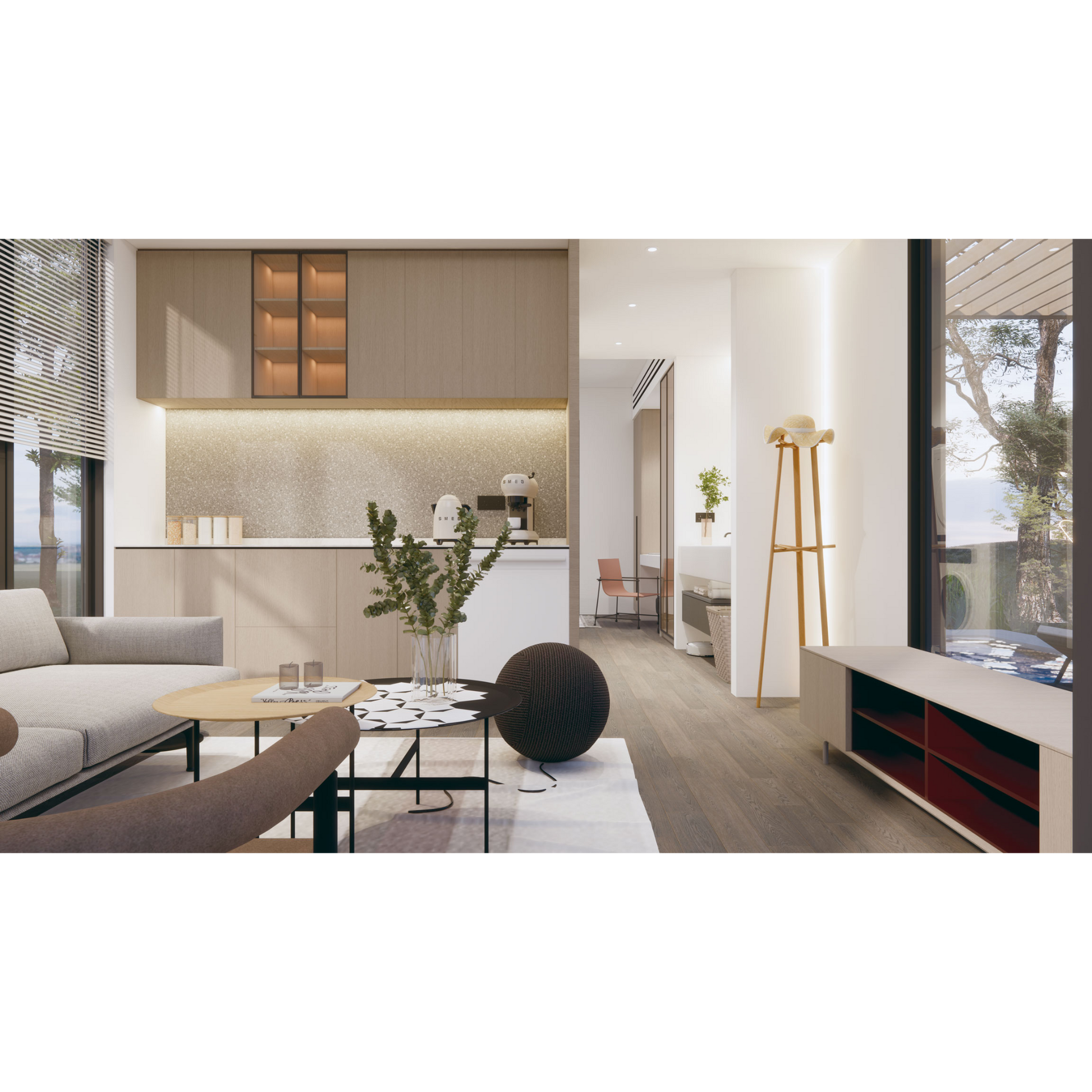

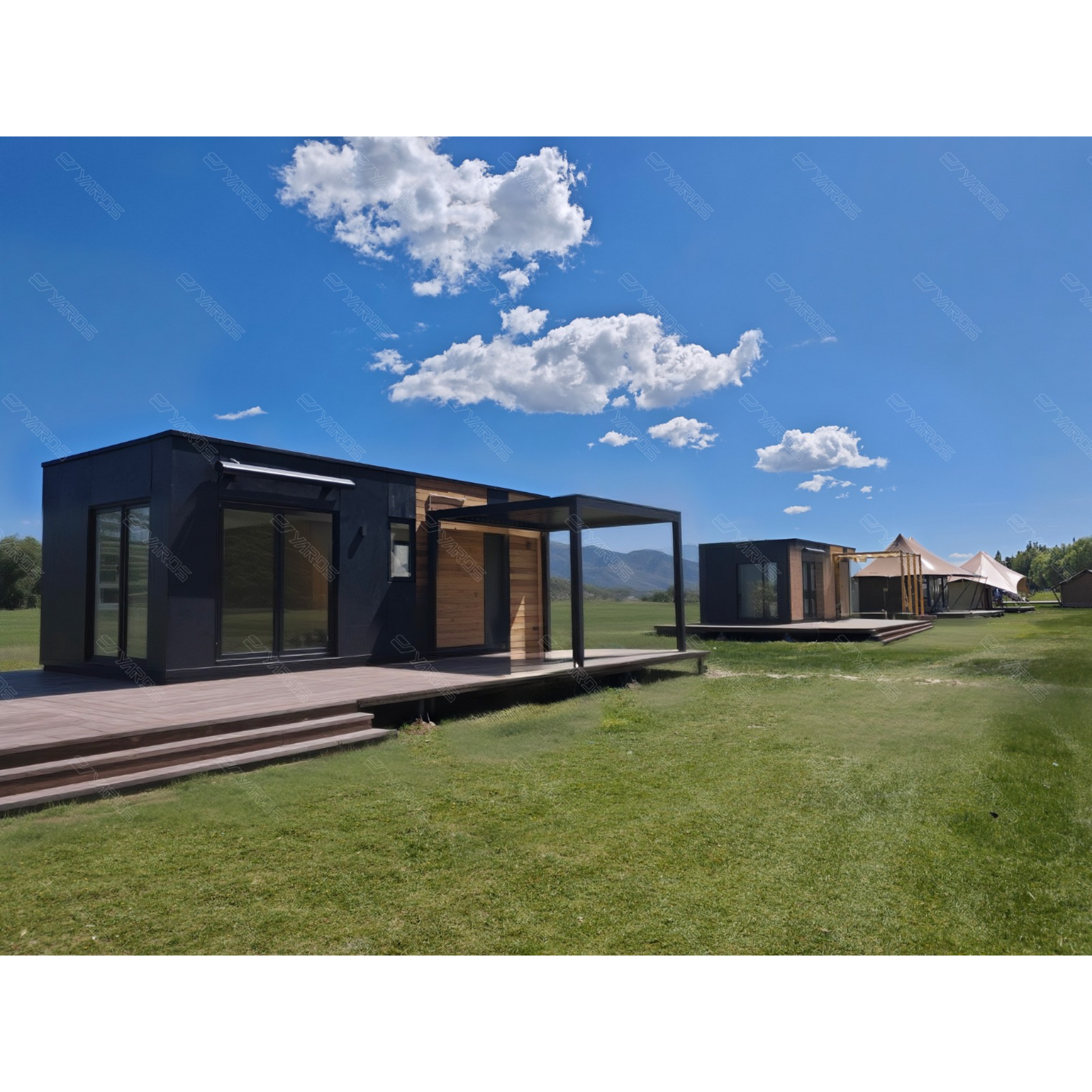

The L36 Luxury Tiny House is a one bedroom modular retreat designed for guests who want the feel of a premium suite in a compact footprint. With a separate living room, private bathroom, and full height ceilings, the L36 is ideal as a deluxe cabin, guest house, or high end glamping unit.

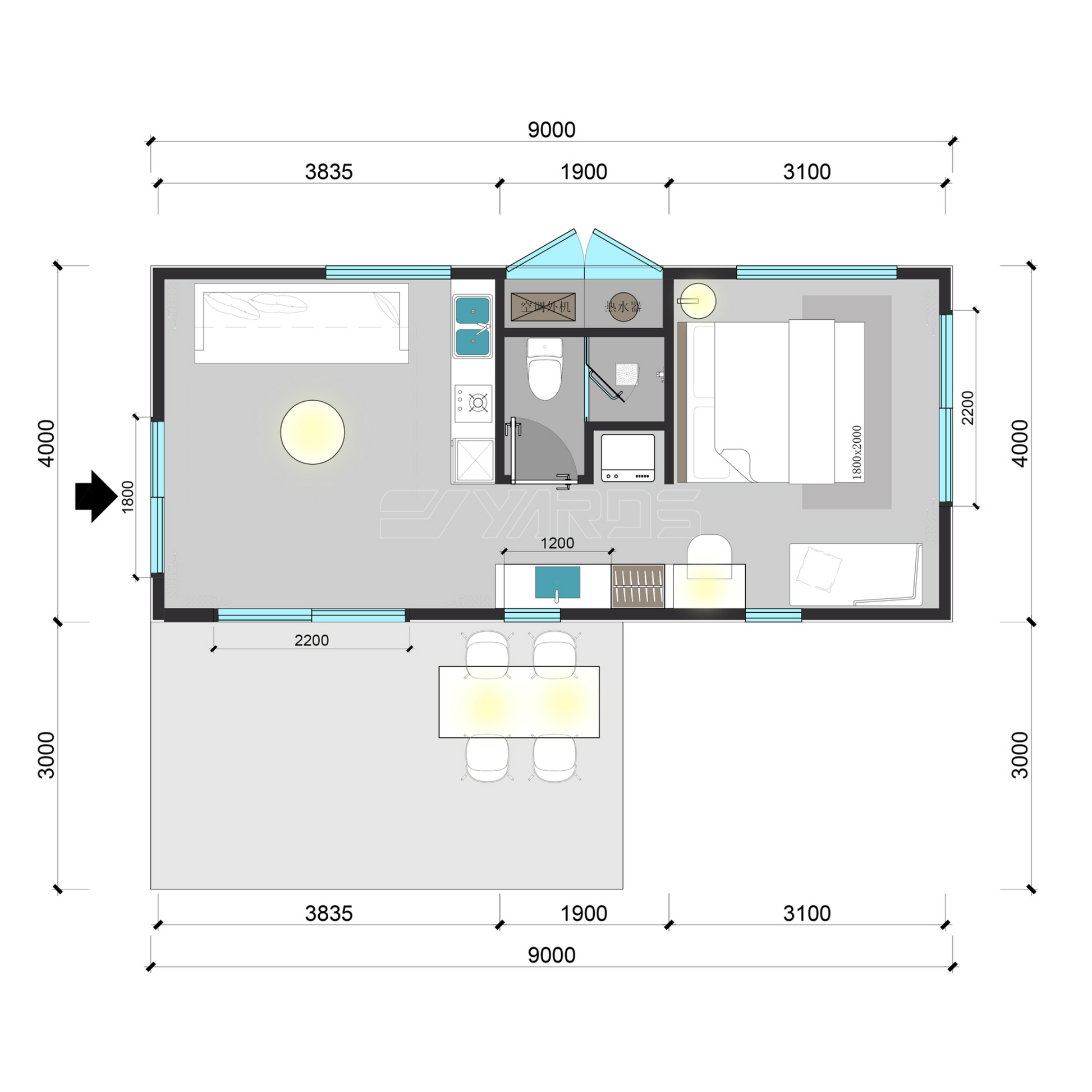

The structure measures approximately 29.5 ft × 13.1 ft (9 m × 4 m) with an interior area of about 387 ft² (36 m²), giving plenty of space for comfortable long term stays while still fitting easily into campsites, resorts, and private properties.

Perfect for eco-resorts, short term rentals, lakeside or mountain retreats, or anyone looking for a turnkey one bedroom tiny home.

What’s Included

The L36 is delivered as a finished structural unit with integrated systems and factory installed interior and exterior materials.

Structural System

• 100 mm × 100 mm × 5 mm hot dip galvanized steel main frame
• Aluminum–magnesium–manganese roof system with waterproofing and thermal insulation filling
• Prefabricated insulated wall system, approx. 4–6 in thick (10–15 cm) for thermal and acoustic comfort

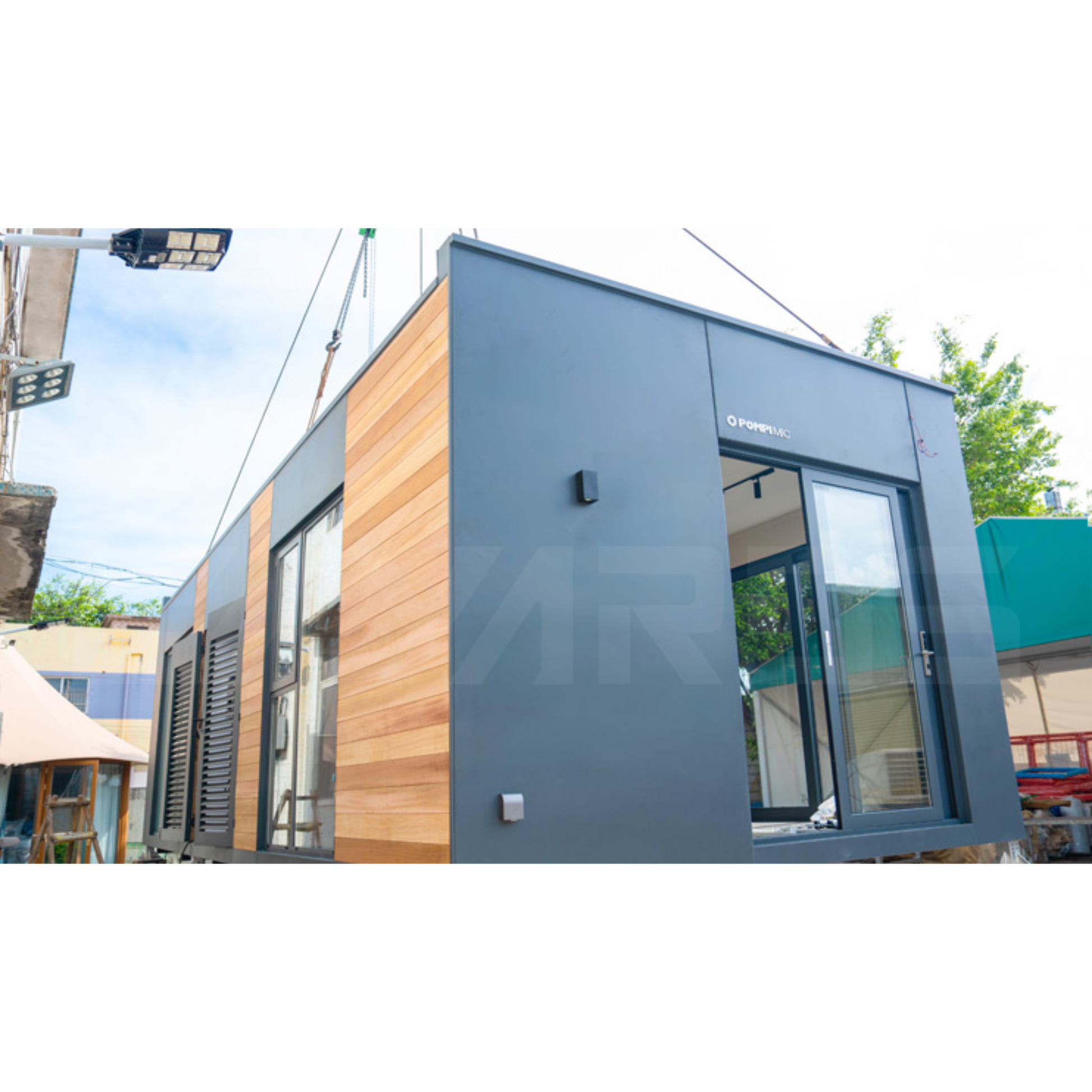

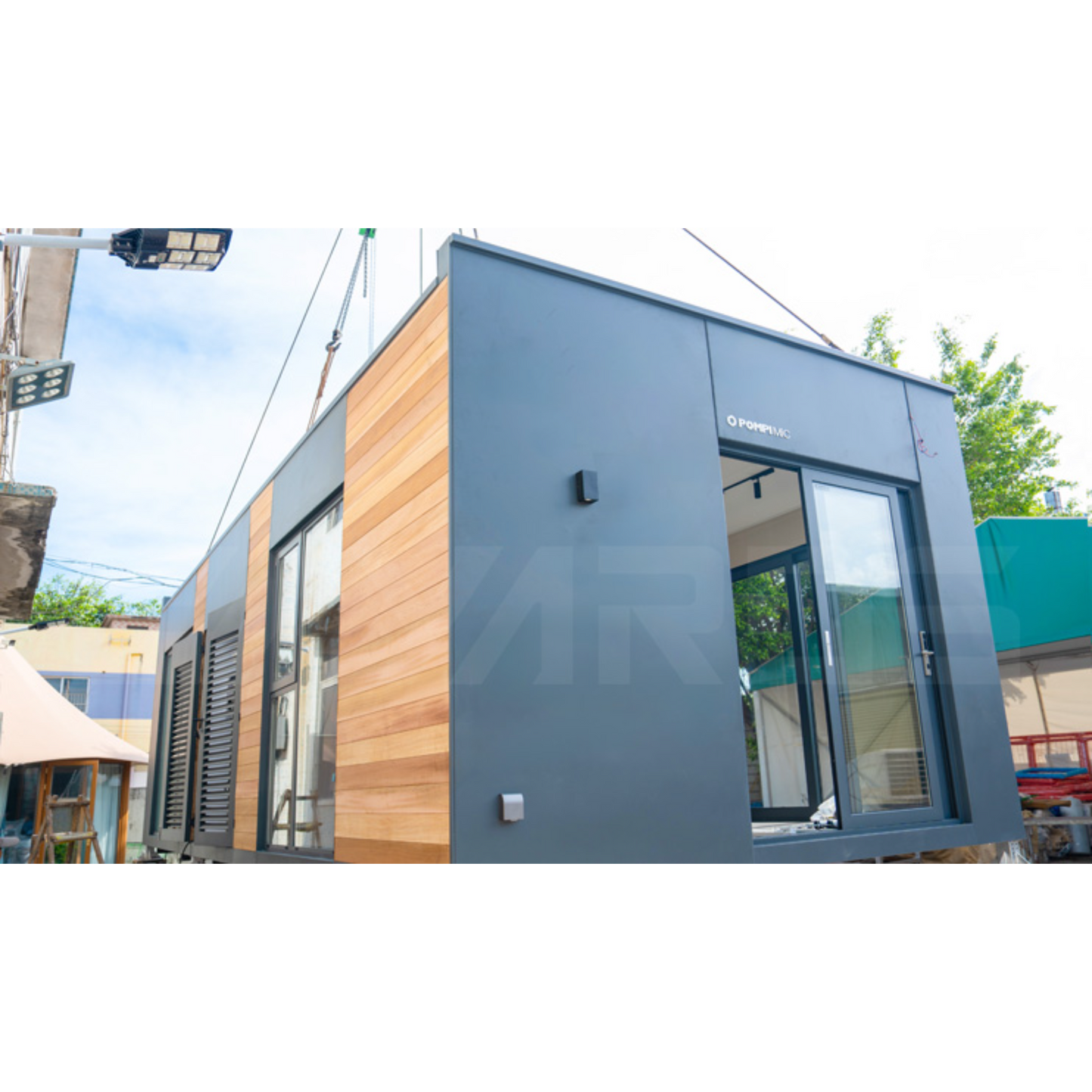

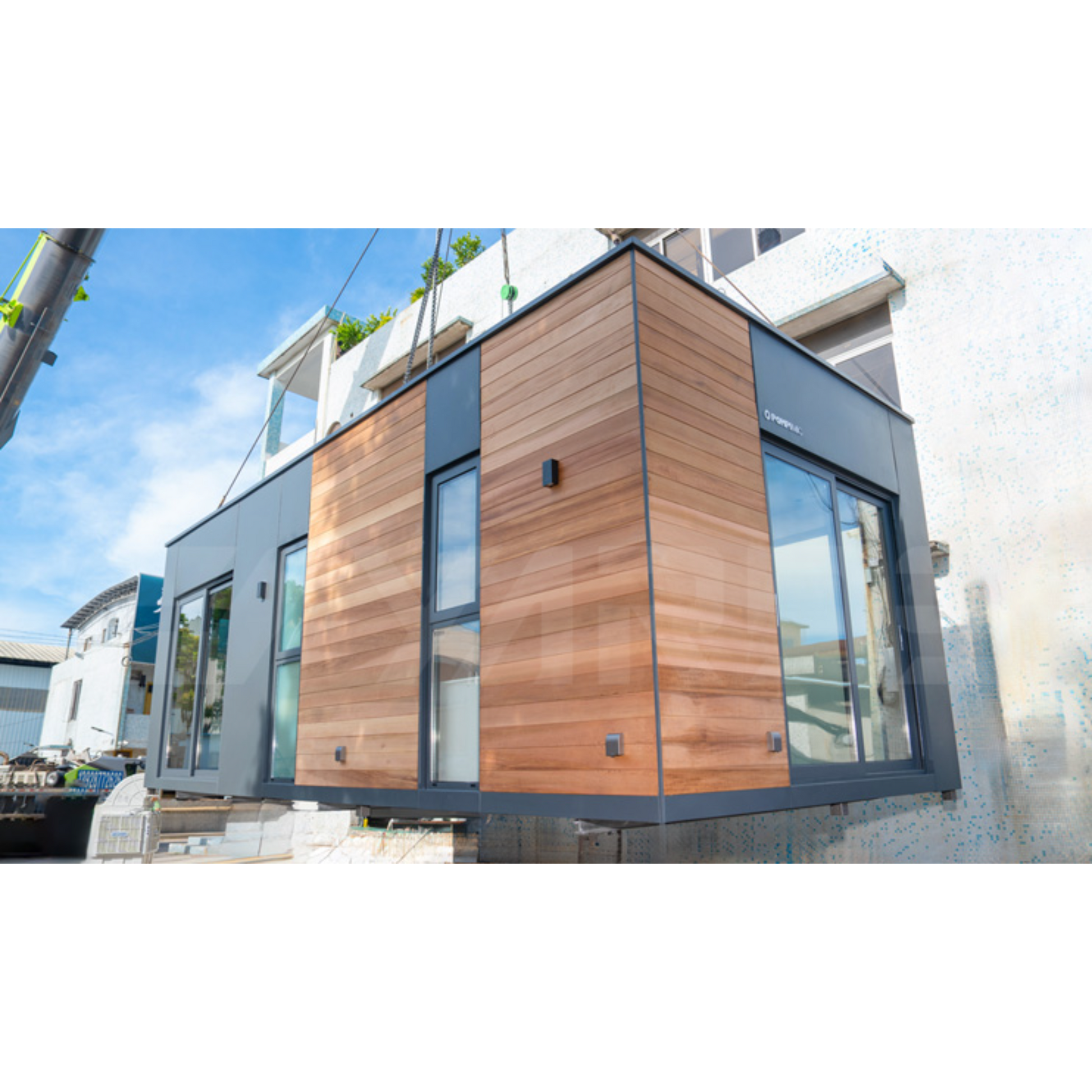

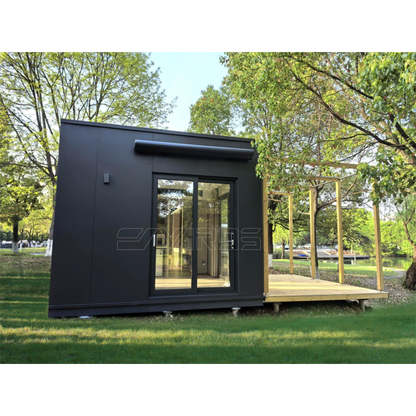

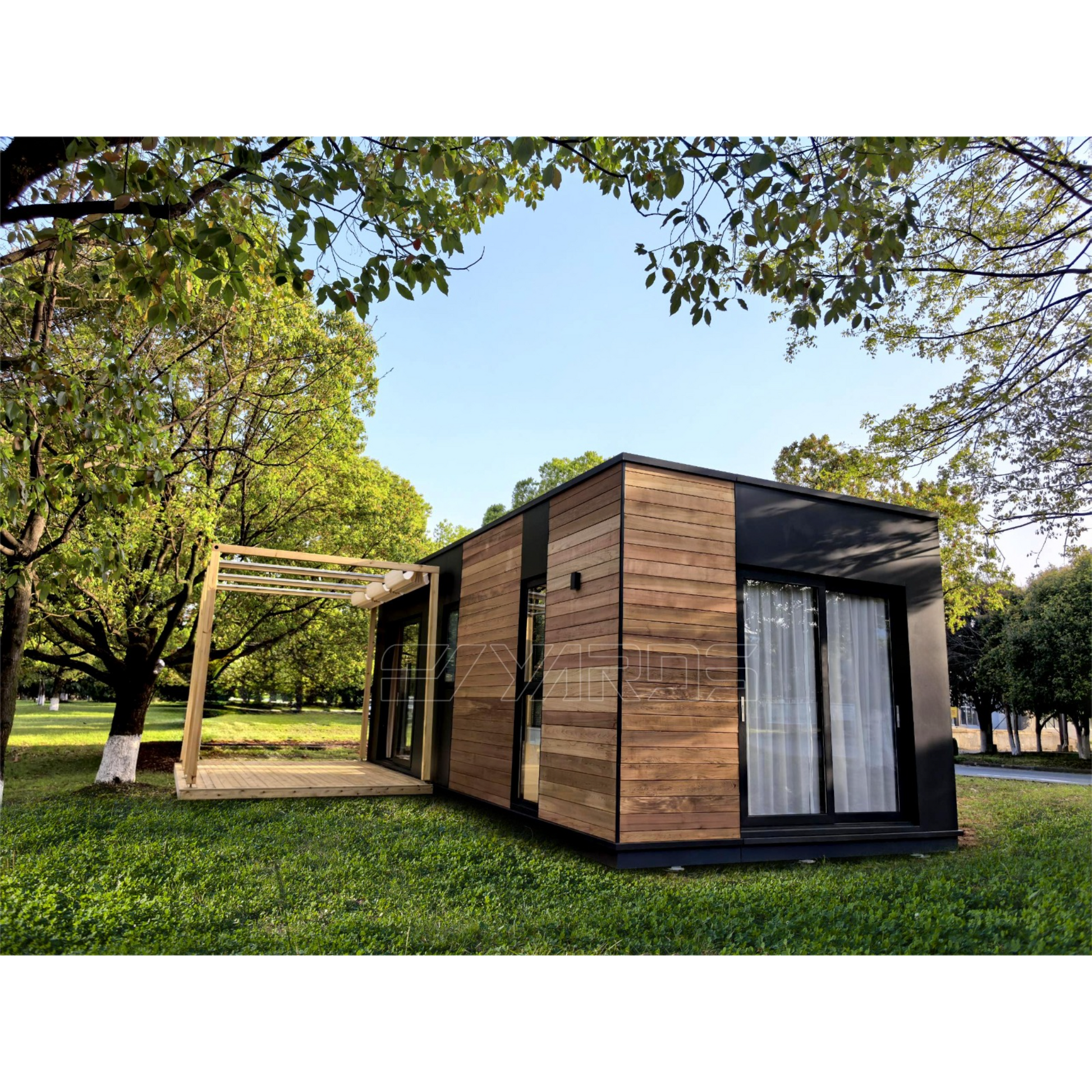

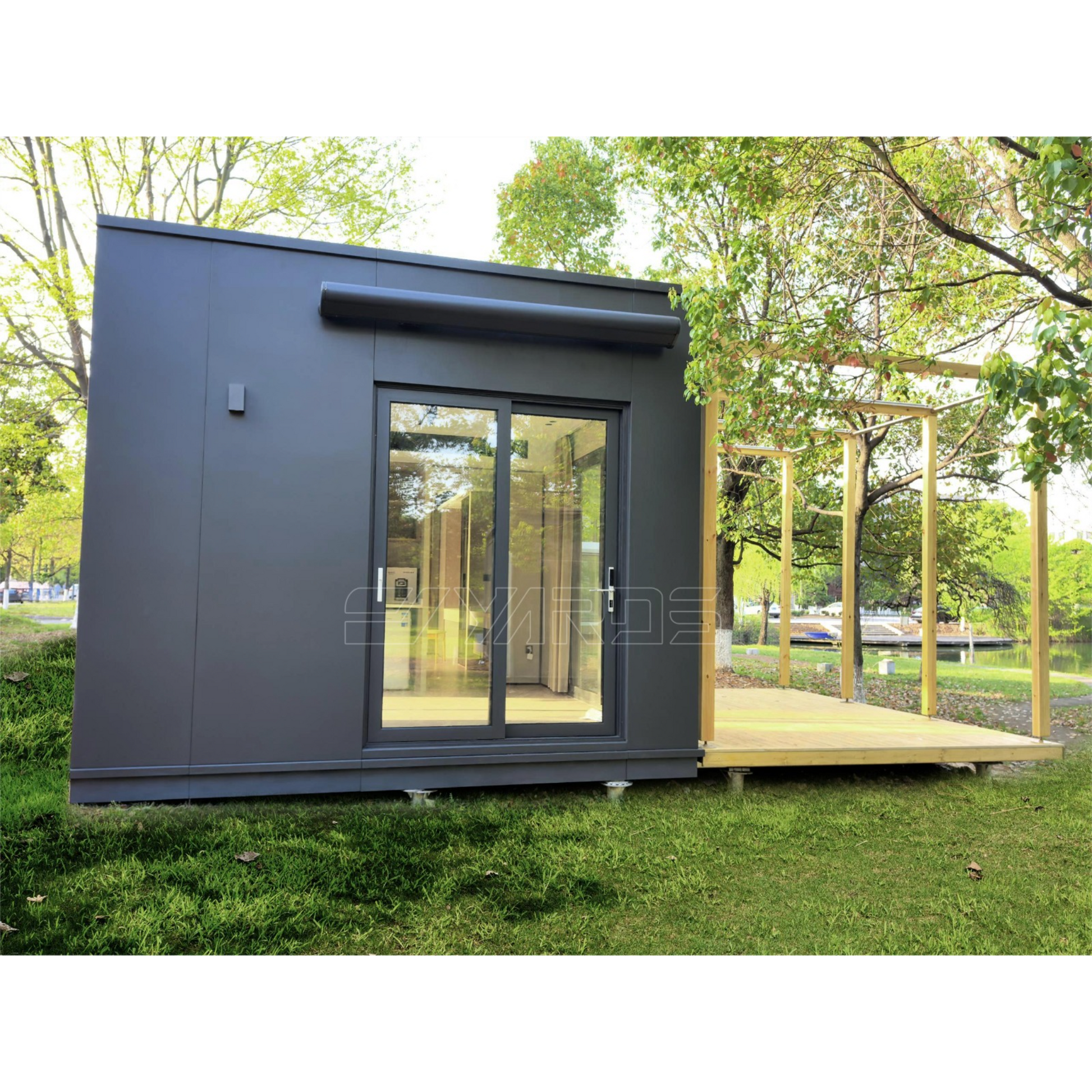

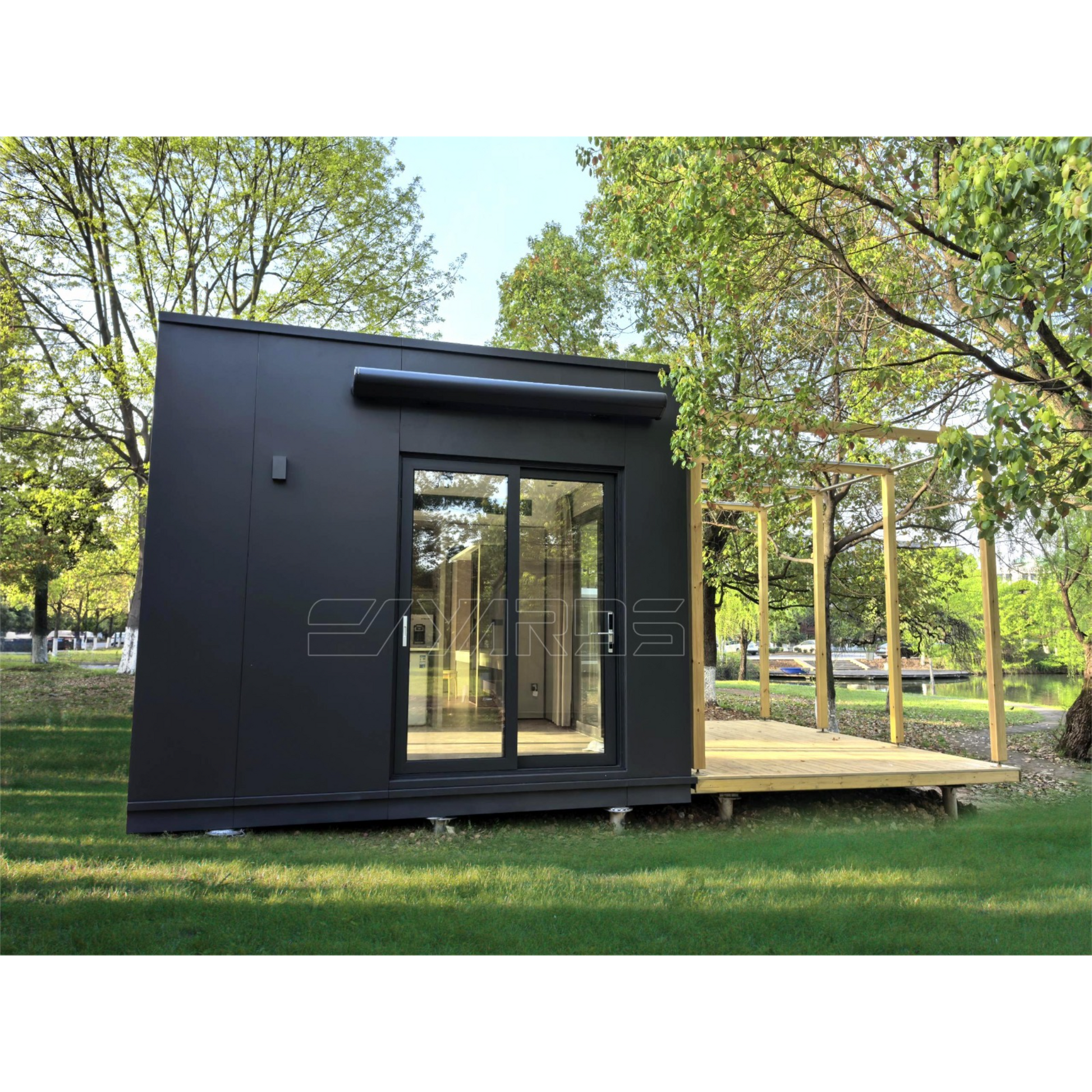

• Exterior wall materials (depending on specification from the manufacturer): 2 mm aluminum panel with fluorocarbon coating, Cedar board, WPS board (wood plastic composite)

Interior & Exterior Finishes

• SPC waterproof interior flooring
• Red cedar solid wood wall panels on selected surfaces (optional PVC veneer available)
• Carbon crystal wall panels with modeled ceiling details
• Aluminum composite panel interior walls in selected areas

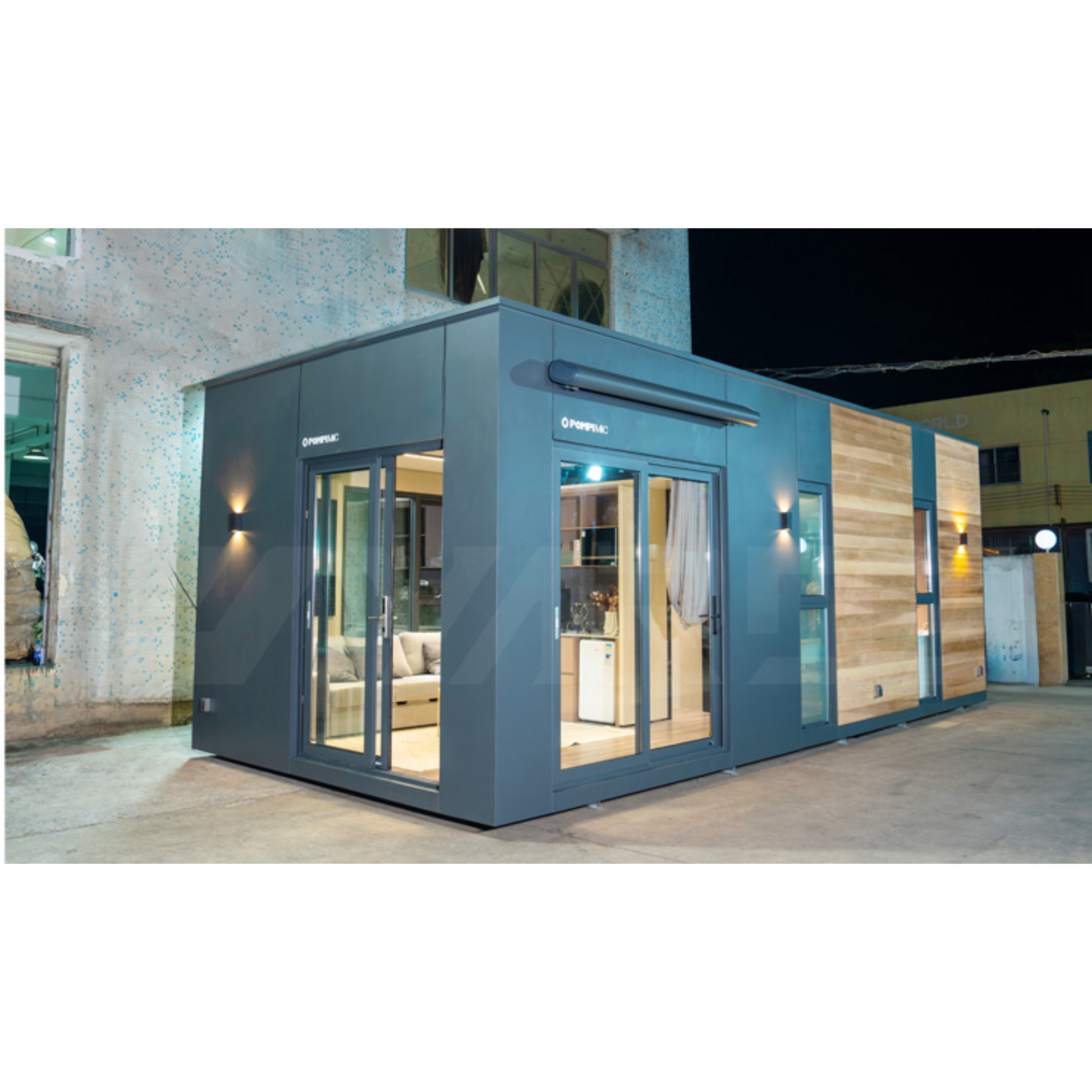

• Aluminum insulating glass doors and windows
• Insulated glass curtain wall system, specification 5 / 20A / 5

Included Functional Systems

• Air conditioning system
• Plumbing system with factory pre-installed piping to bathroom and wet areas
• Electrical and lighting system with installed fixtures
• Branded bathroom set, typically including: Toilet, Shower, Sink and vanity.

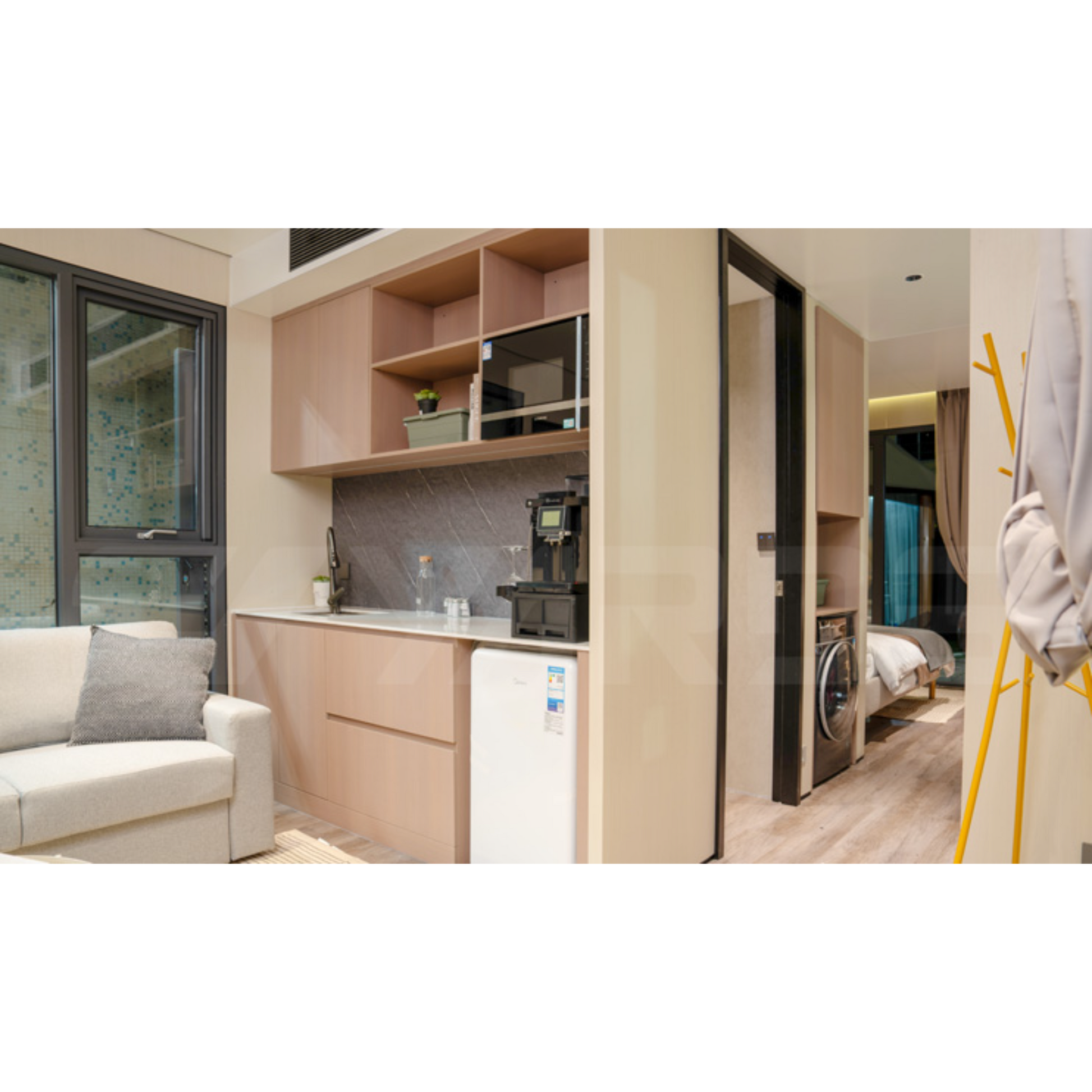

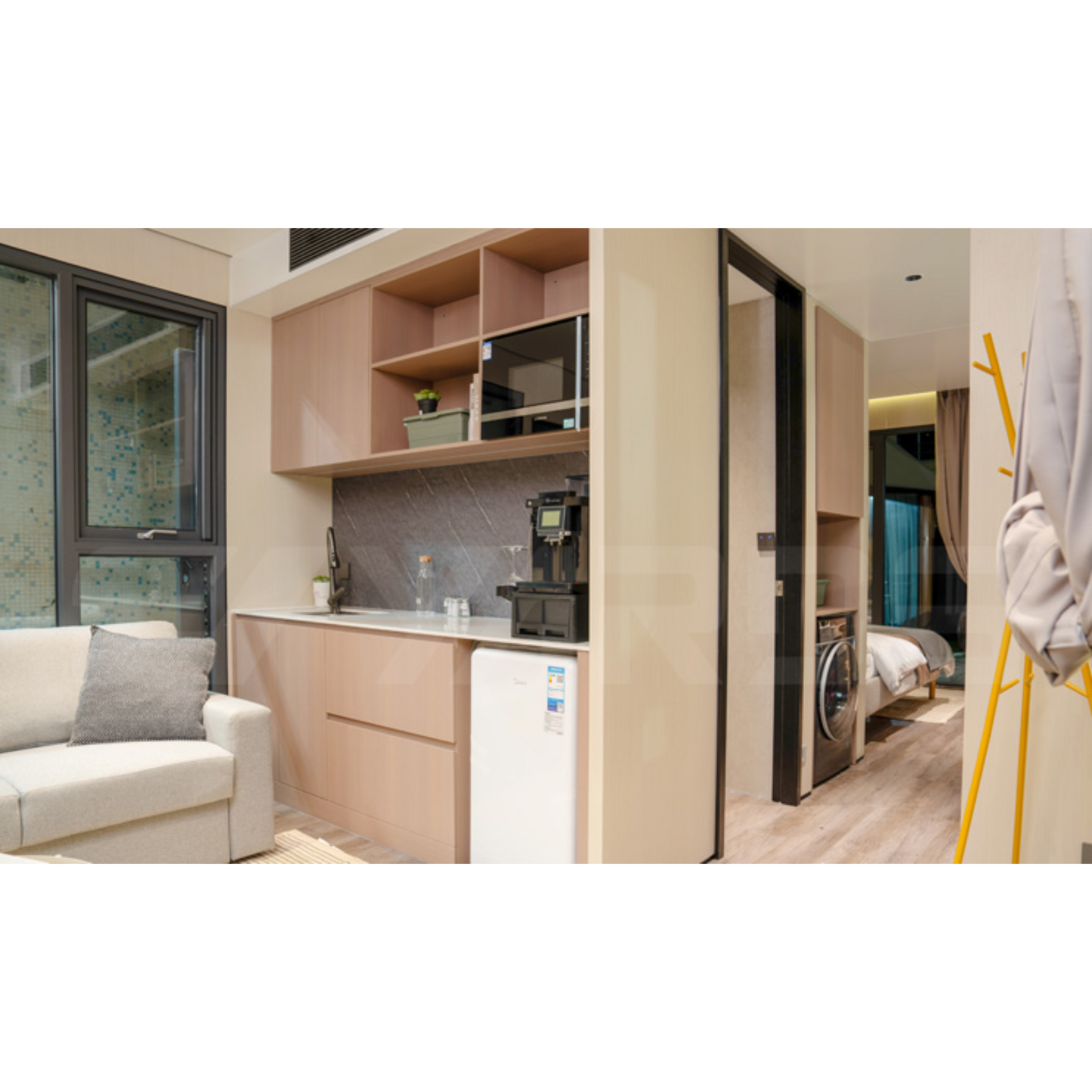

• Base connections and space allocation for a compact kitchenette or wet bar, ready for your appliances and cabinetry
• Sound insulation performance of approximately 30 dB

Specifications

Not Included

• Interior loose furniture such as bed, sofa, tables, chairs, and decor

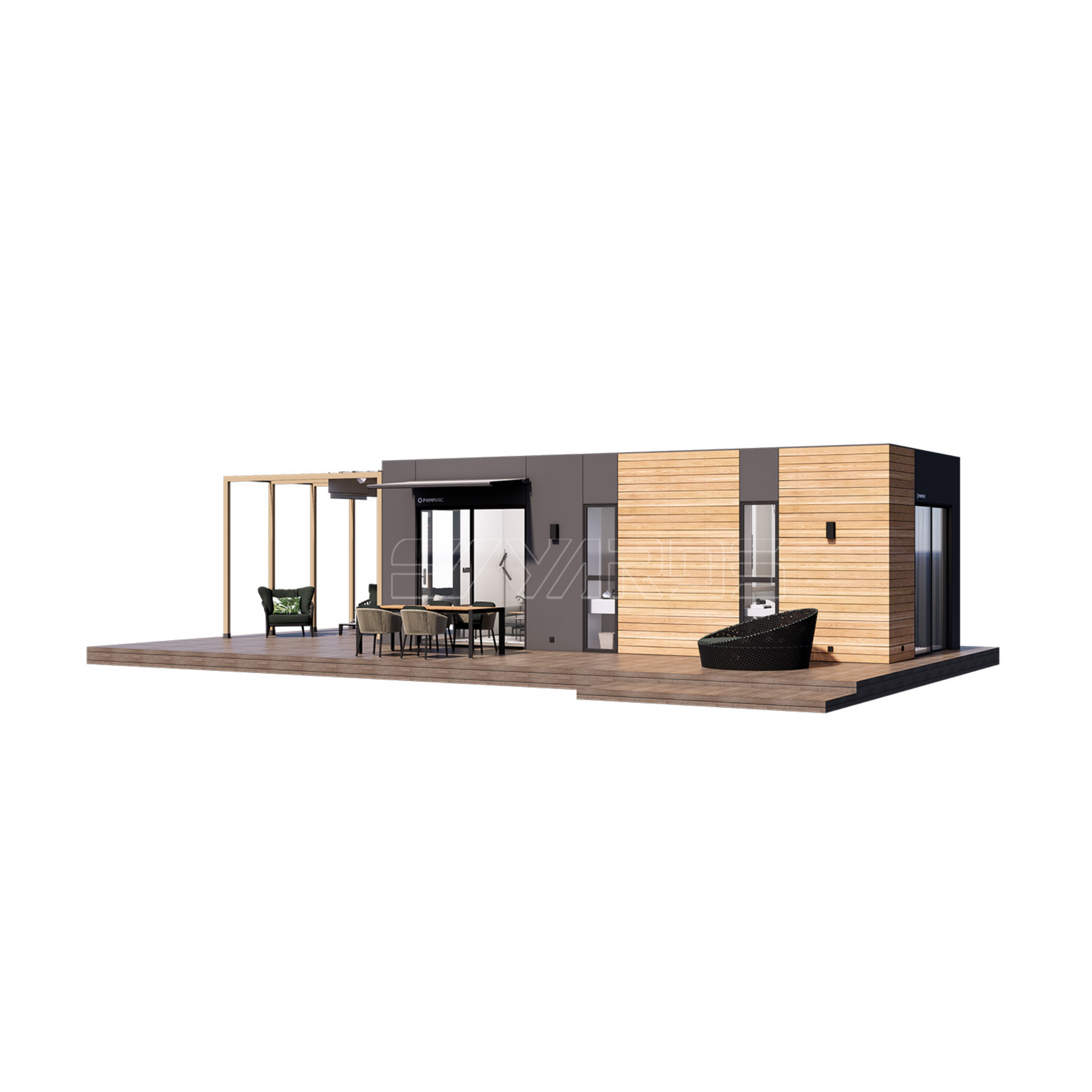

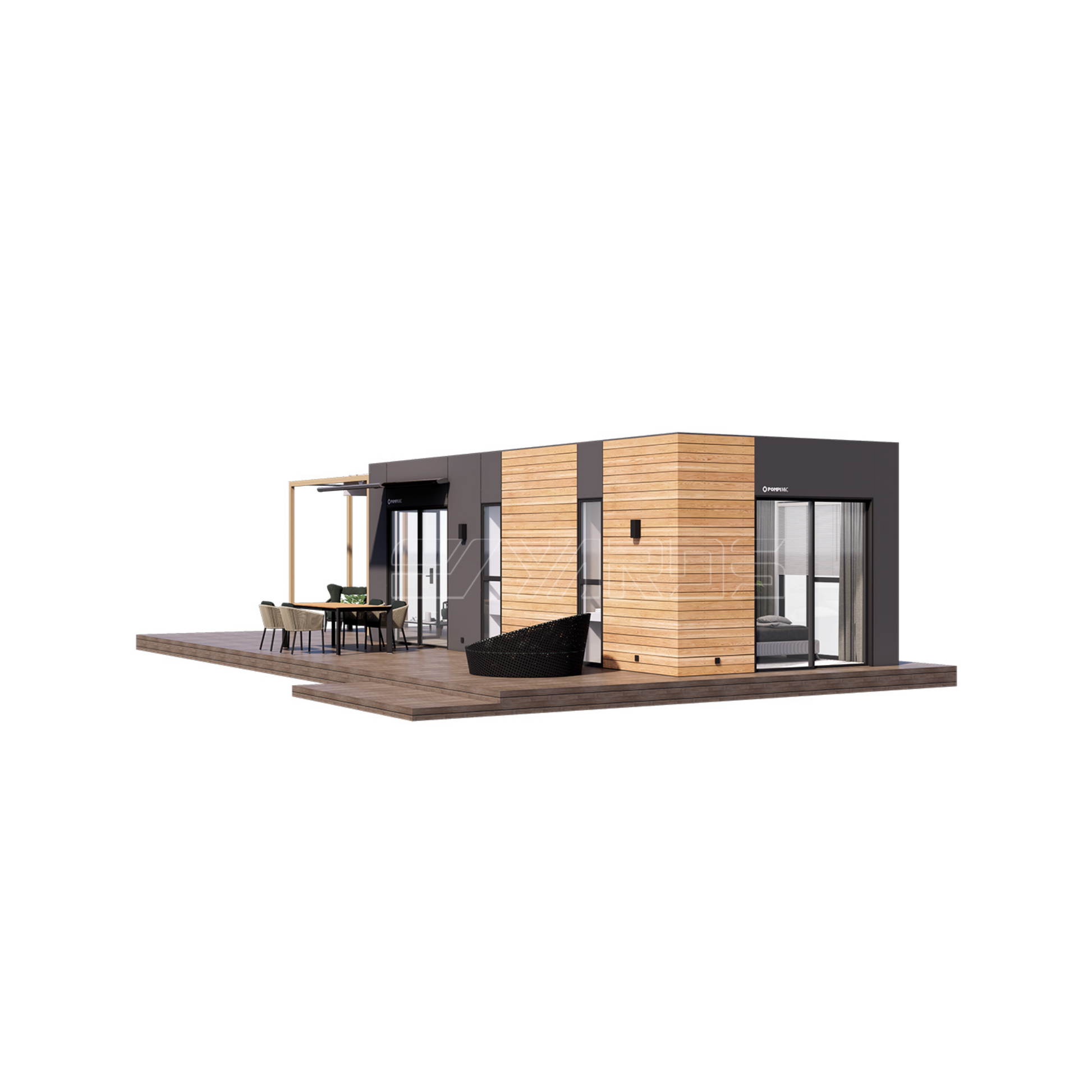

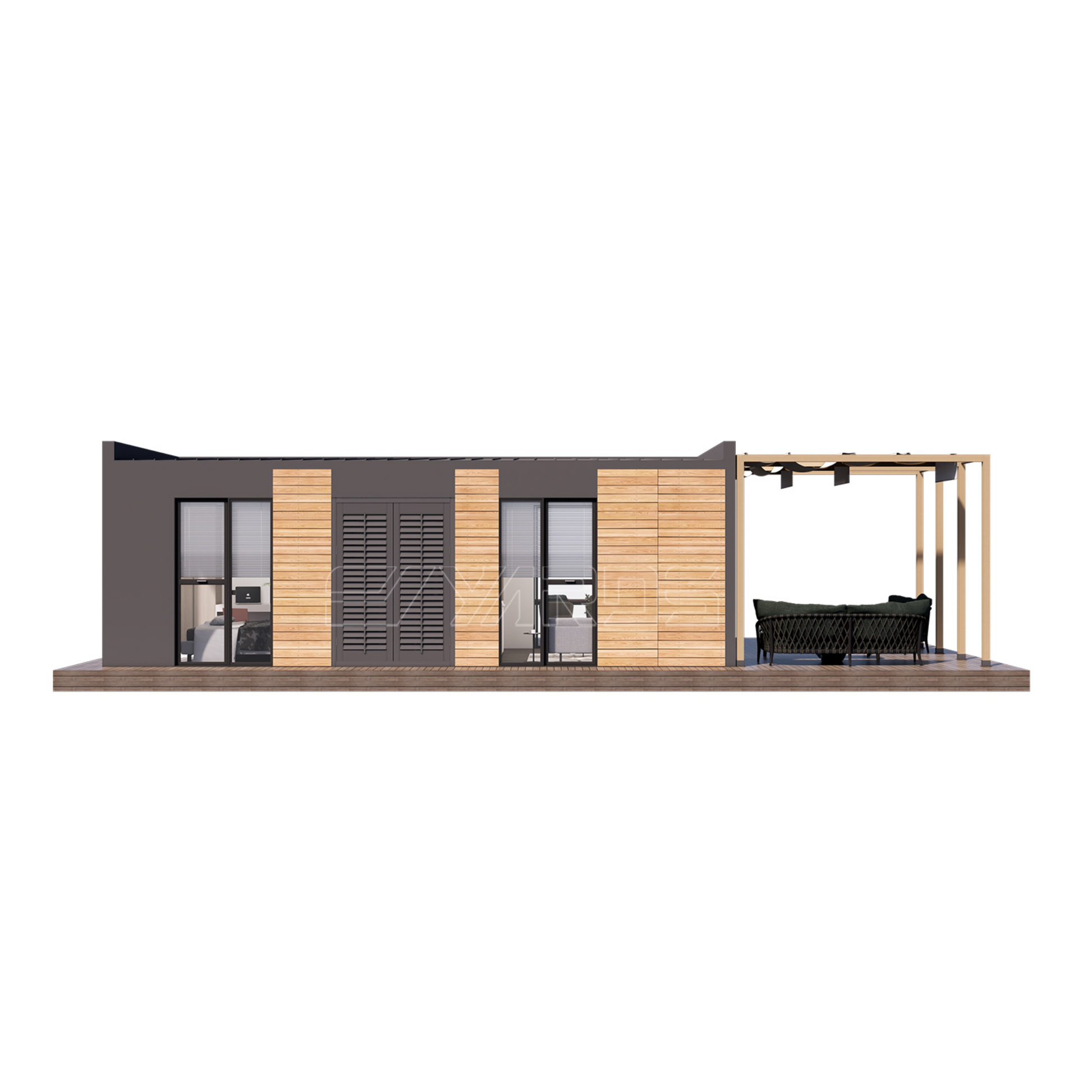

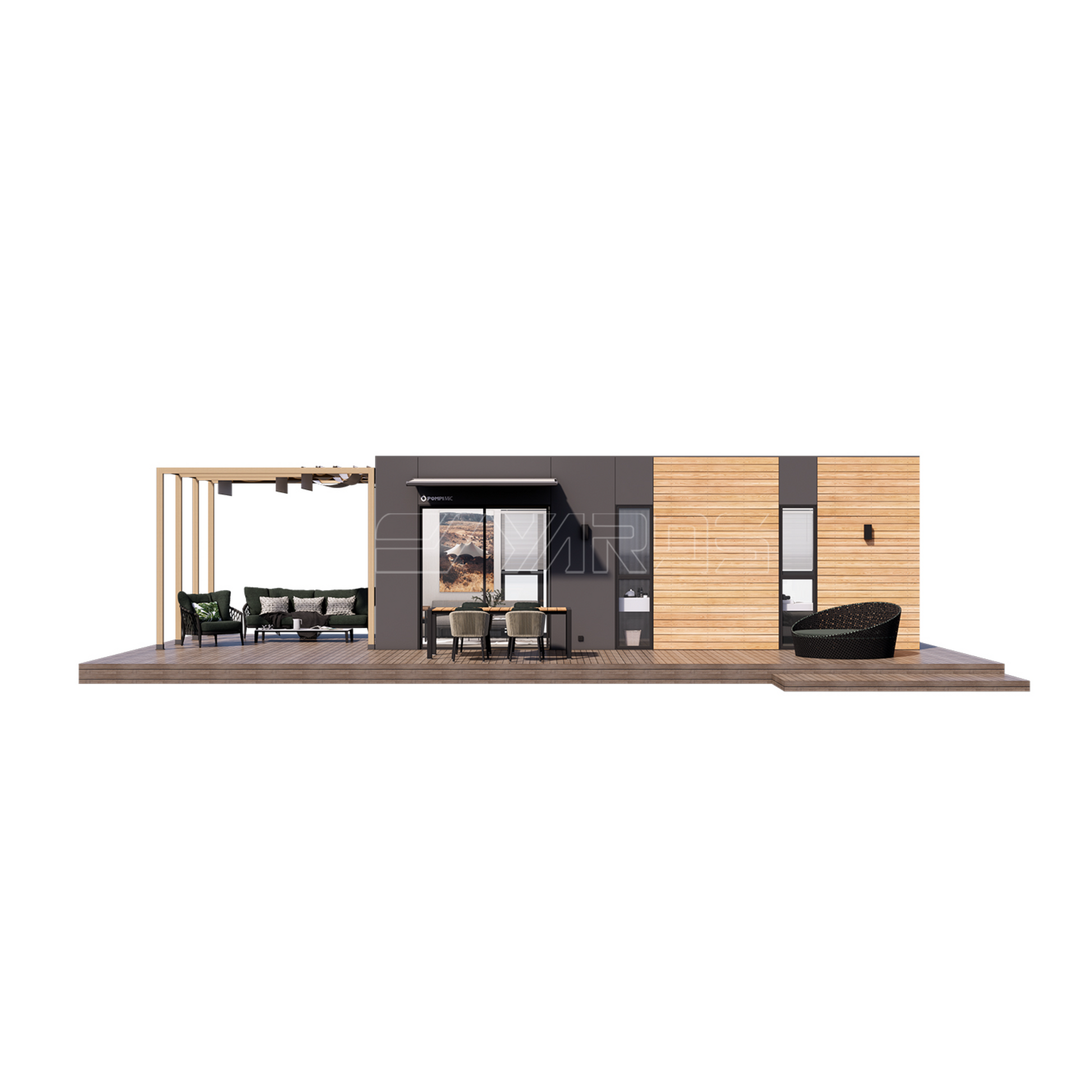

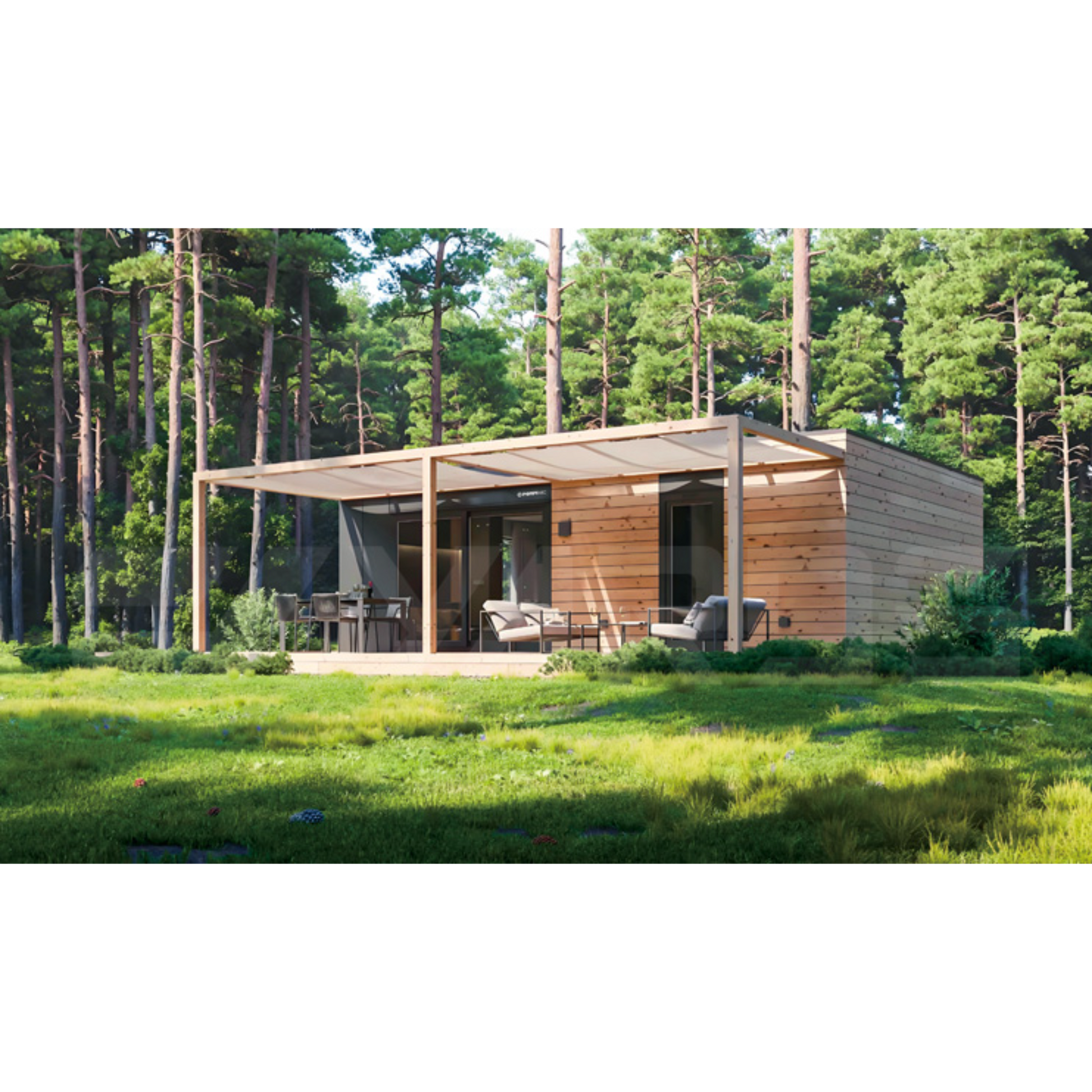

• Exterior decks, platforms, pools, landscaping, and other site works shown in sample images
• Kitchen appliances and custom cabinetry unless otherwise specified in your final order

Images are for illustration only and may show optional layouts and furniture packages. Final delivered configuration depends on your chosen options and project requirements.

Optional Add-Ons

(Contact us to customize your order.)

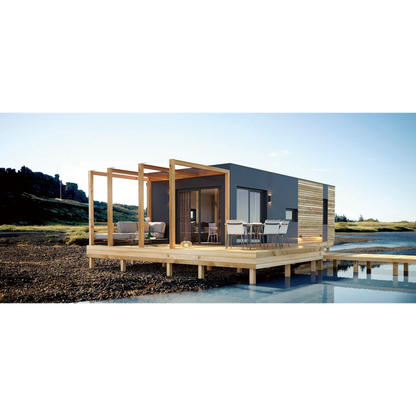

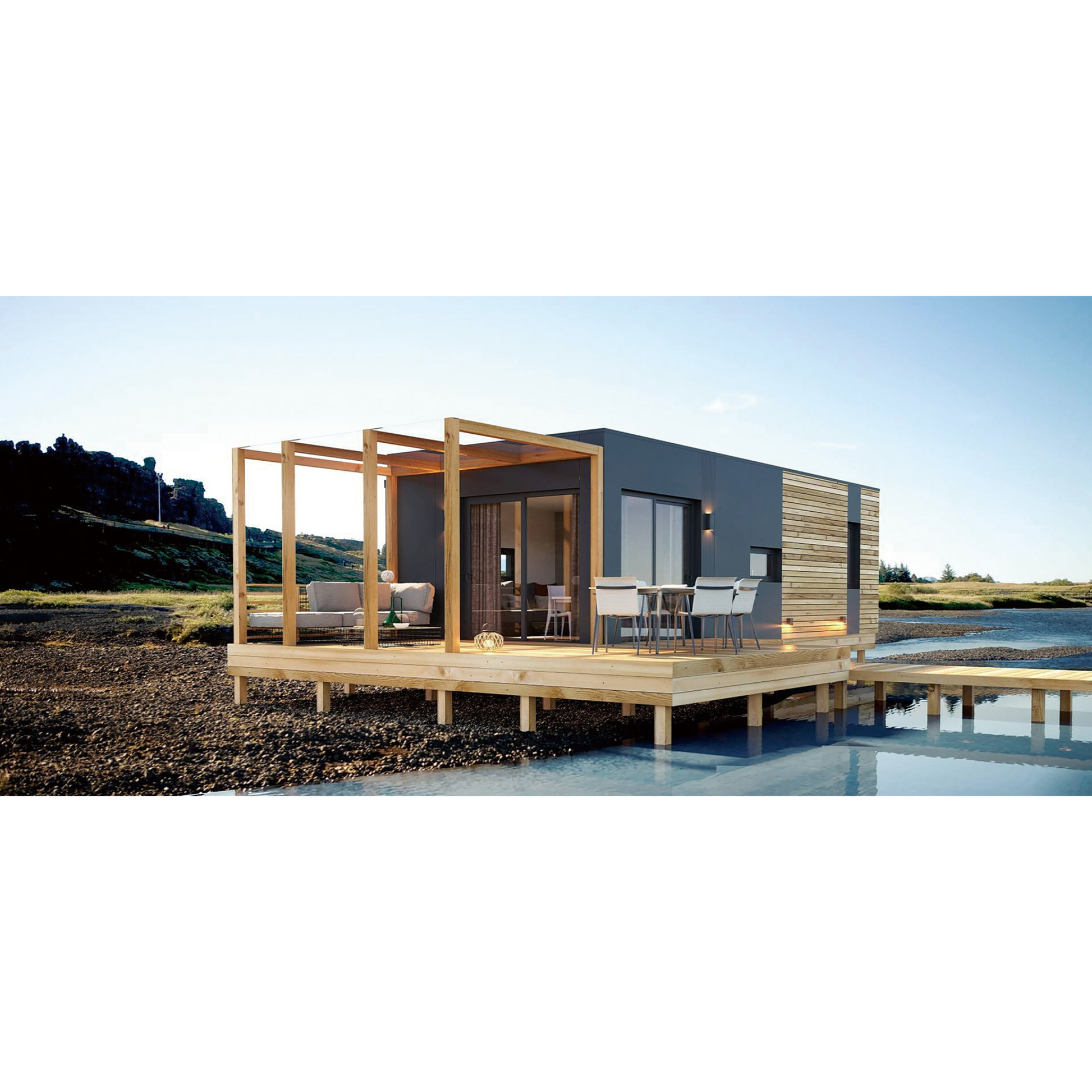

• Exterior wooden platforms and deck systems for lakeside, forest, or desert locations
• Interior partition adjustments and layout tweaks within the one bedroom configuration

Optional Upgrades

(Available upon request from the manufacturer.)

• Fresh air and ventilation system
• Electric underfloor heating
• Whole-house soft furnishings and furniture package
• Intelligent theater / media system
• Whole-house smart home system

These upgrades allow you to position the L36 anywhere from a simple premium cabin to a fully equipped smart tiny home.

Installation and Platform Notes

L36 units are designed as modular structures that can be installed on either a reinforced concrete slab or an engineered wooden platform, depending on site conditions and local regulations. We recommend sourcing platforms and foundations locally to reduce shipping costs and to meet local building standards.
Please note:

• Installation services are not included in the base price.
• Detailed structural drawings and connection information are provided, and we recommend hiring experienced local builders or contractors to complete the foundation and installation.

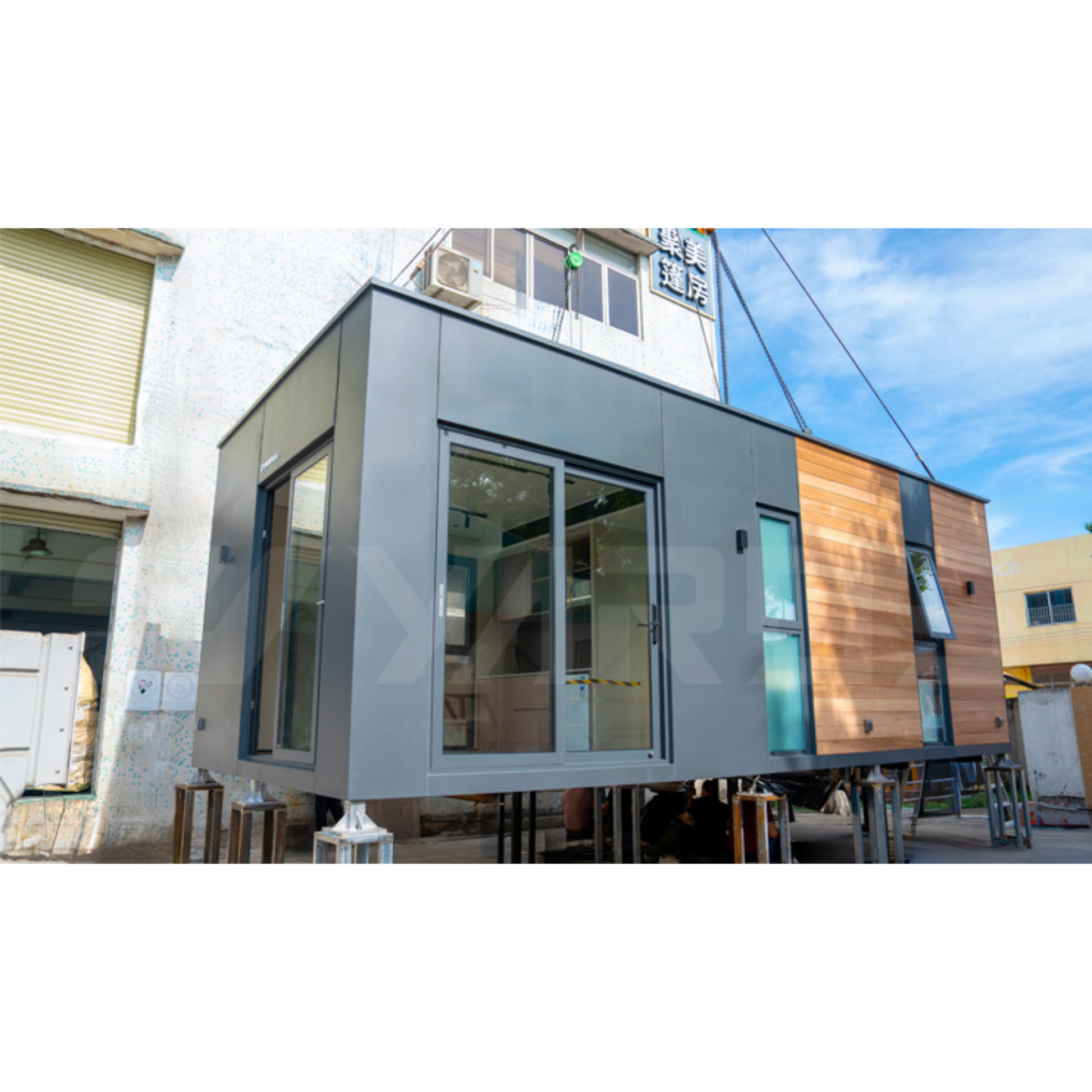

• Customers are responsible for arranging suitable lifting equipment or a forklift at the delivery site to safely unload the house module.
