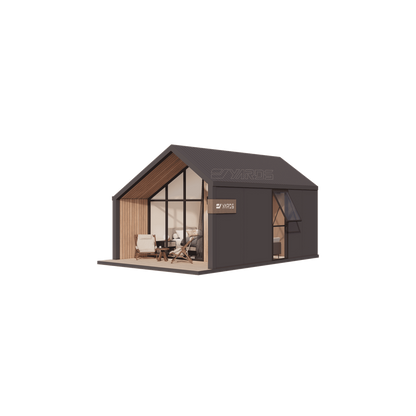

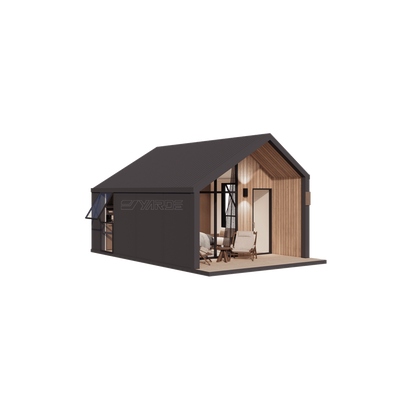

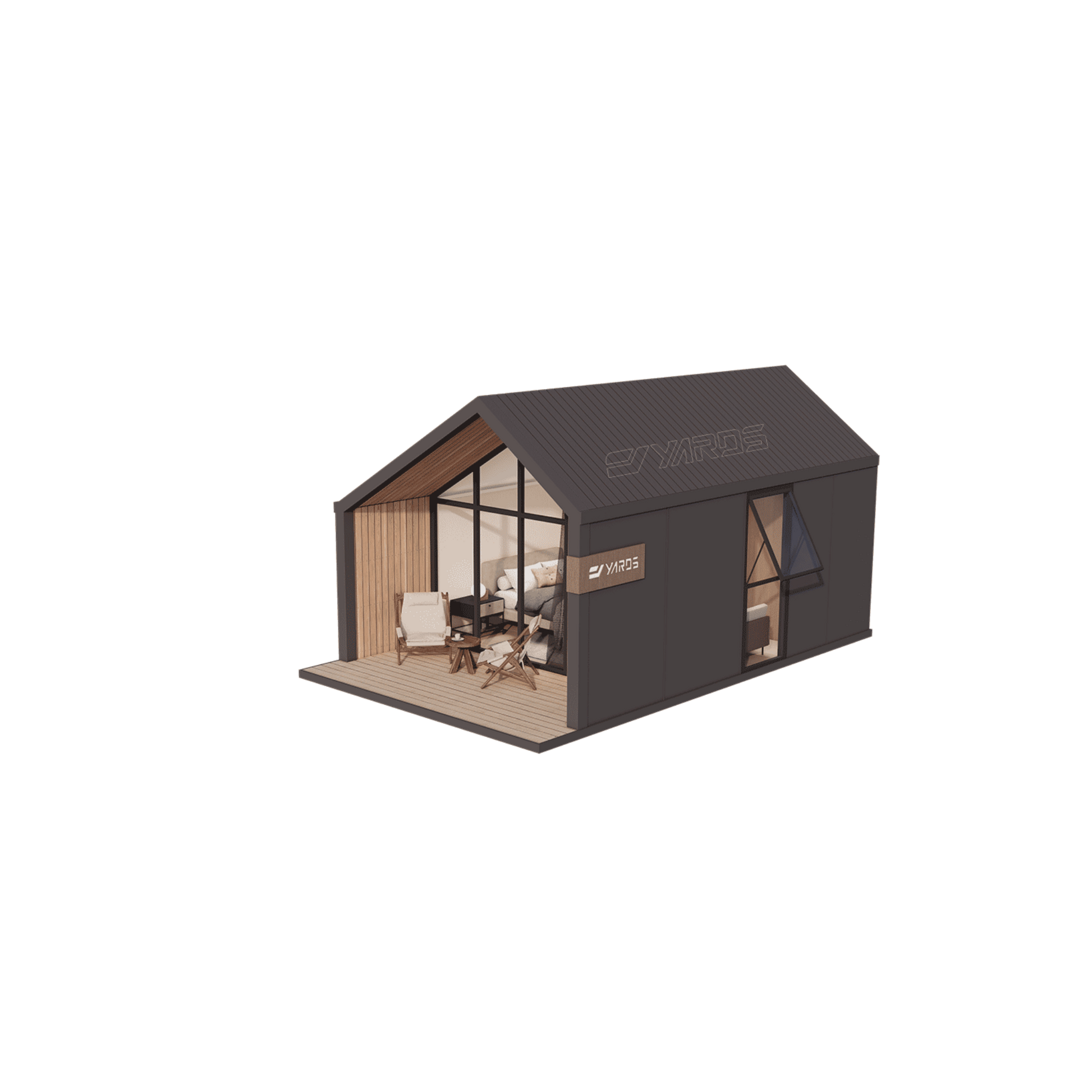

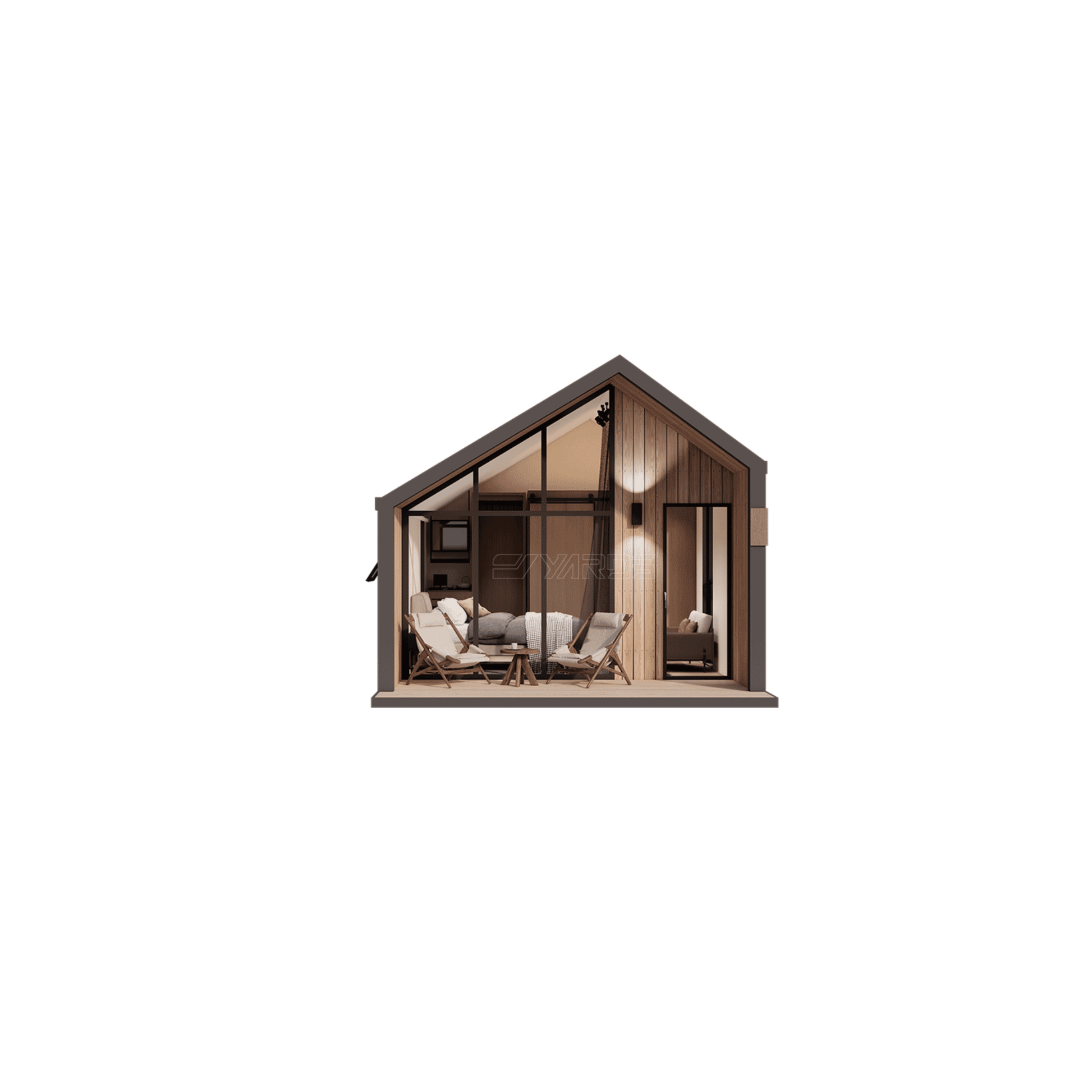

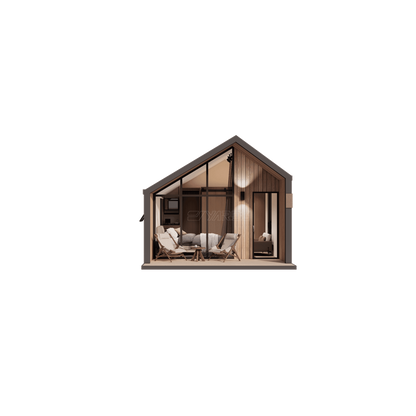

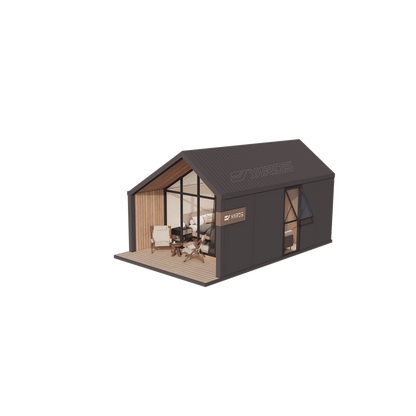

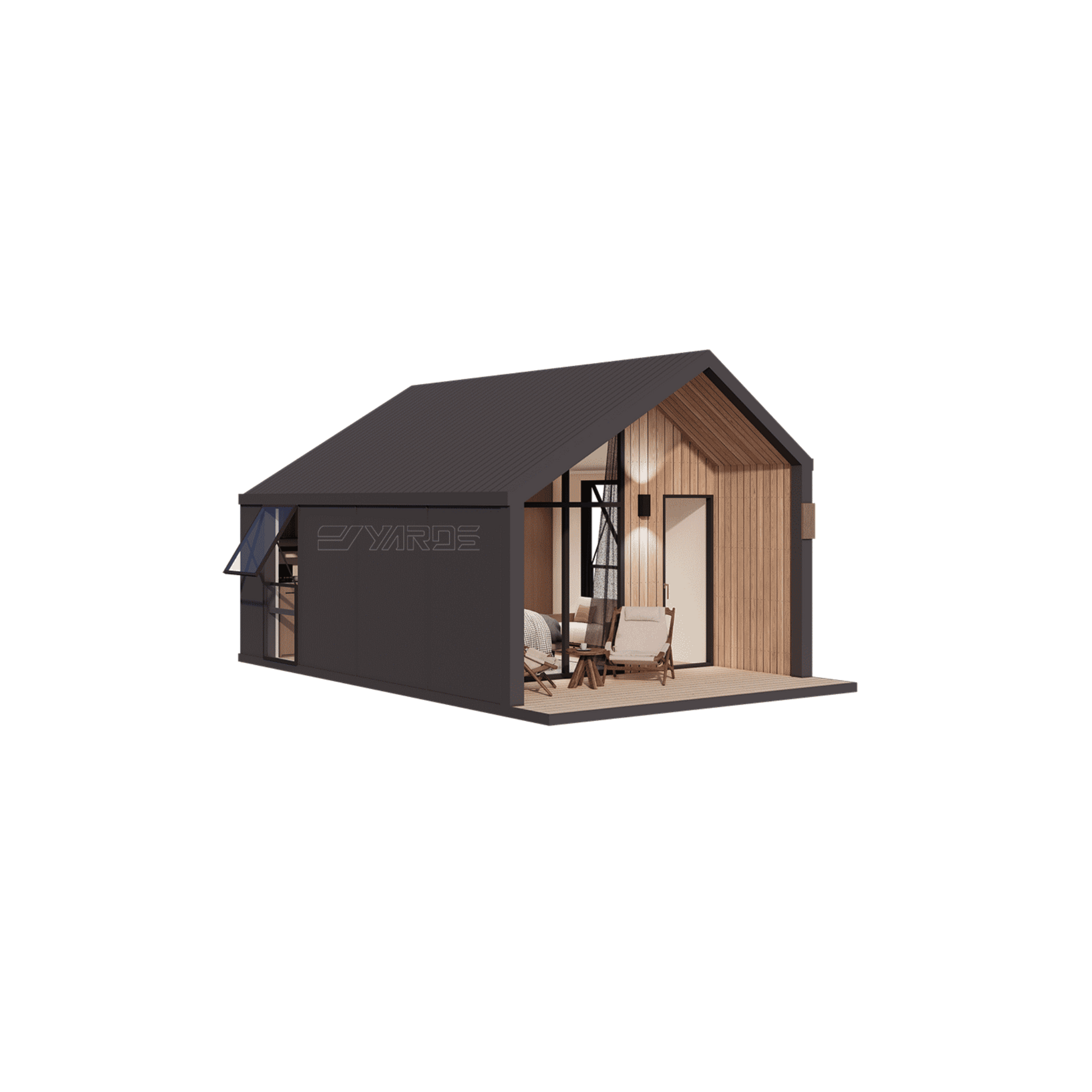

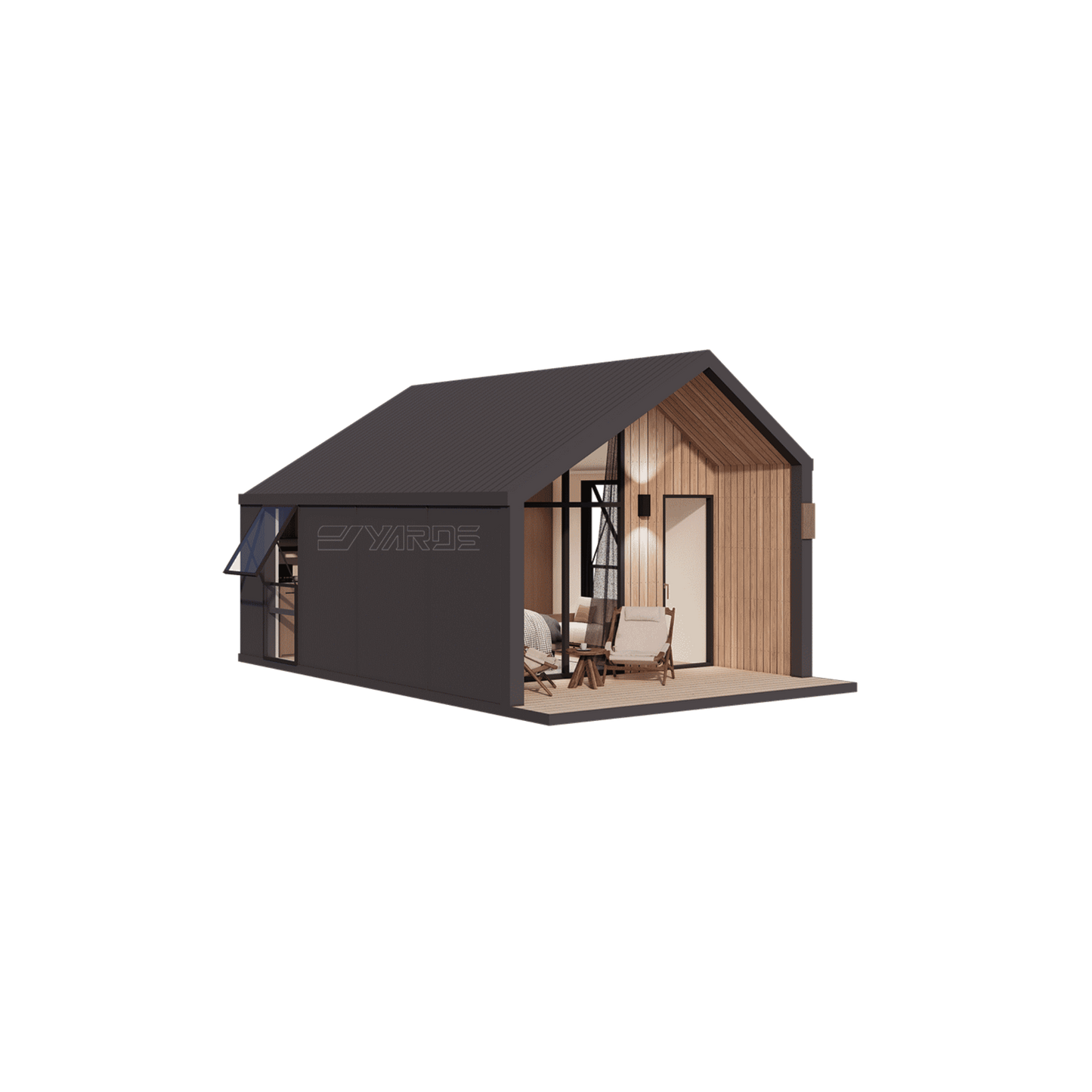

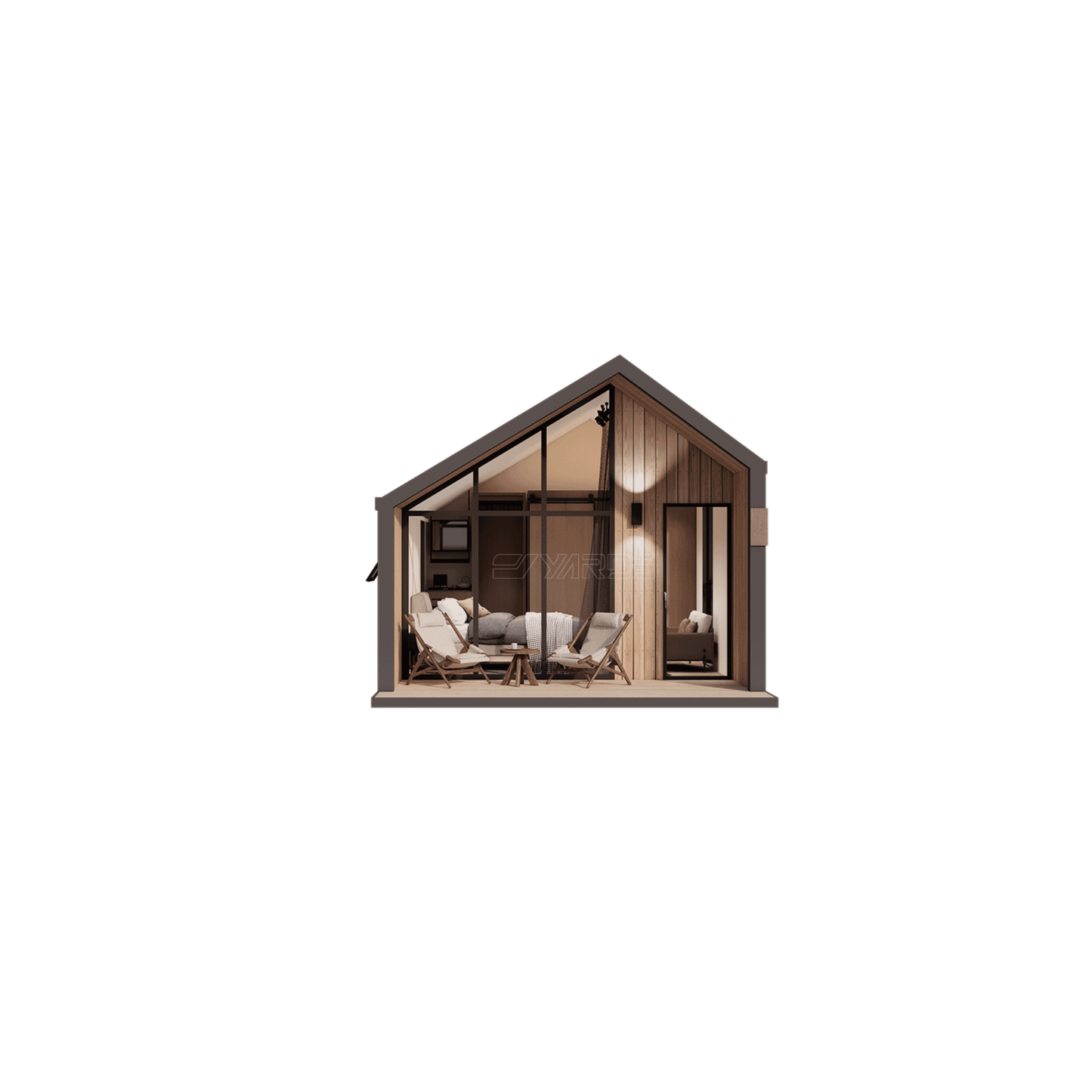

N3 Luxury Tiny House

N3 Tiny House

The N3 Luxury Tiny House is a compact one bedroom modular unit designed for premium glamping, guest accommodation, or private retreats. With a comfortable bedroom and a full bathroom in a highly efficient layout, it delivers the feel of a boutique hotel room in nature.

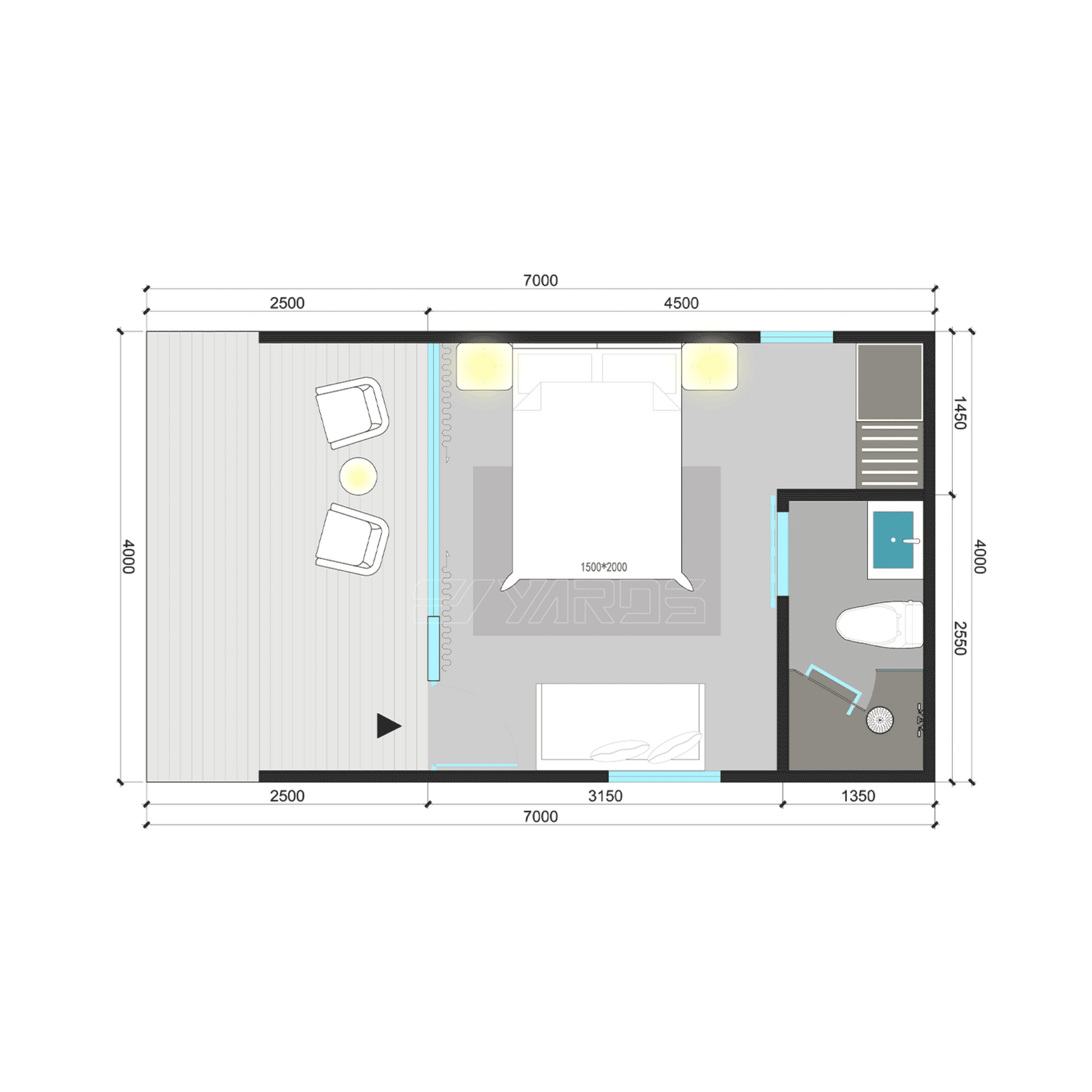

The structure measures approximately 13.1 ft × 19.7 ft (4 m × 6 m) with an interior area of about 183 ft² (17 m²), making it easy to position on tight sites while still providing enough space for comfortable short and medium term stays.

Perfect for eco resorts, cabins, tiny house villages, or anyone looking for a turnkey one bedroom tiny home.

What Is Included

The N3 is delivered as a finished structural unit with integrated systems and factory installed interior and exterior materials.

Structural System

• 100 mm × 100 mm × 5 mm hot dip galvanized steel frame
• Aluminum magnesium manganese roof system with waterproofing and thermal insulation filling
• Prefabricated insulated wall system, approx. 4–6 in (10–15 cm) thick for thermal and acoustic comfort
• Exterior wall materials (depending on manufacturer specification): 2 mm aluminum panel with fluorocarbon coating, Cedar wood panels, WPS (wood plastic composite) boards

Interior and Exterior Finishes

• SPC waterproof interior flooring
• Red cedar solid wood wall panels on selected surfaces (optional PVC veneer from the manufacturer)
• Carbon crystal wall panels with modeled ceiling details
• Aluminum composite panel interior walls in selected areas
• Aluminum insulating glass doors and windows
• Insulated glass curtain wall, specification 5 / 20A / 5

Included Functional Systems

• Air conditioning system
• Plumbing system with factory pre installed piping to the bathroom
• Electrical and lighting system with installed fixtures
• Branded bathroom set, typically including: Toilet, Shower, Sink and vanity
• Sound insulation performance of approximately 30 dB

Specifications

Not Included

• Interior loose furniture such as bed, side tables, chairs, and decor
• Exterior platforms, decks, pools, landscaping, and other site works shown in sample images
• Kitchen or kitchenette, appliances, and custom cabinetry unless otherwise specified in your final order

Images are for illustration only and may show optional layouts and furniture packages. Final delivered configuration depends on your selected options and project needs.

Optional Add Ons

(Contact us to customize your order.)

• Exterior wooden platforms and deck systems suited to lakeside, forest, desert, or coastal locations
• Interior layout adjustments and partition tweaks within the one bedroom configuration

Optional Upgrades

(Available upon request from the manufacturer.)

• Fresh air and ventilation system
• Electric underfloor heating
• Whole house soft furnishings and furniture package
• Intelligent theater and media system
• Whole house smart home system

These upgrades allow you to position the N3 anywhere from a simple high quality cabin to a fully equipped smart tiny home.

Installation and Platform Notes

N3 units are designed as modular structures that can be installed on either a reinforced concrete slab or an engineered wooden platform, depending on site conditions and local regulations. We recommend sourcing platforms and foundations locally to reduce shipping costs and to meet local building standards.
Please note:

• Installation services are not included in the base price.
• Detailed structural drawings and connection information are provided, and we recommend hiring experienced local builders or contractors to complete the foundation and installation.
• Customers are responsible for arranging suitable lifting equipment or a forklift at the delivery site to safely unload the house module.
