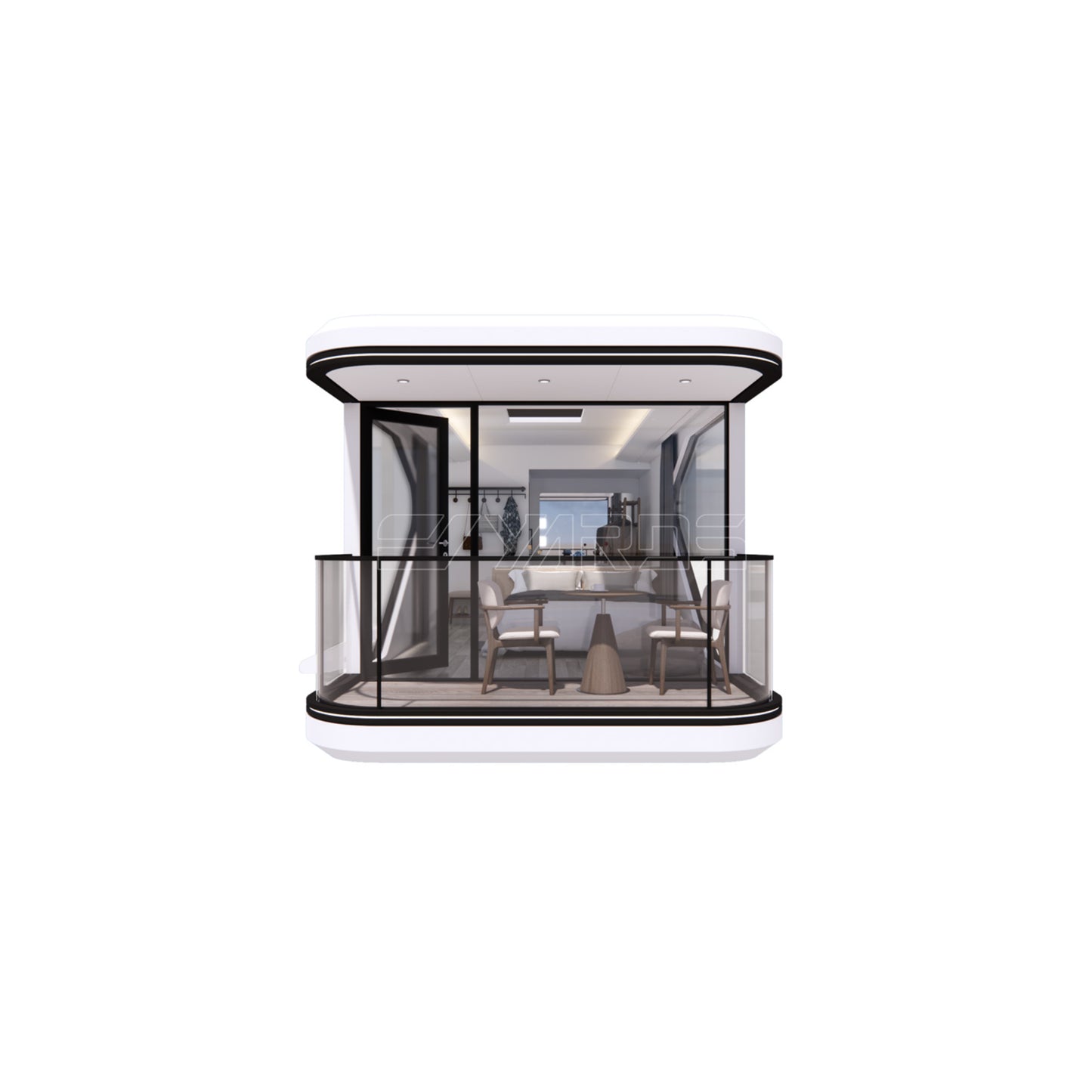

V3 Luxury Tiny House

V3 Tiny House

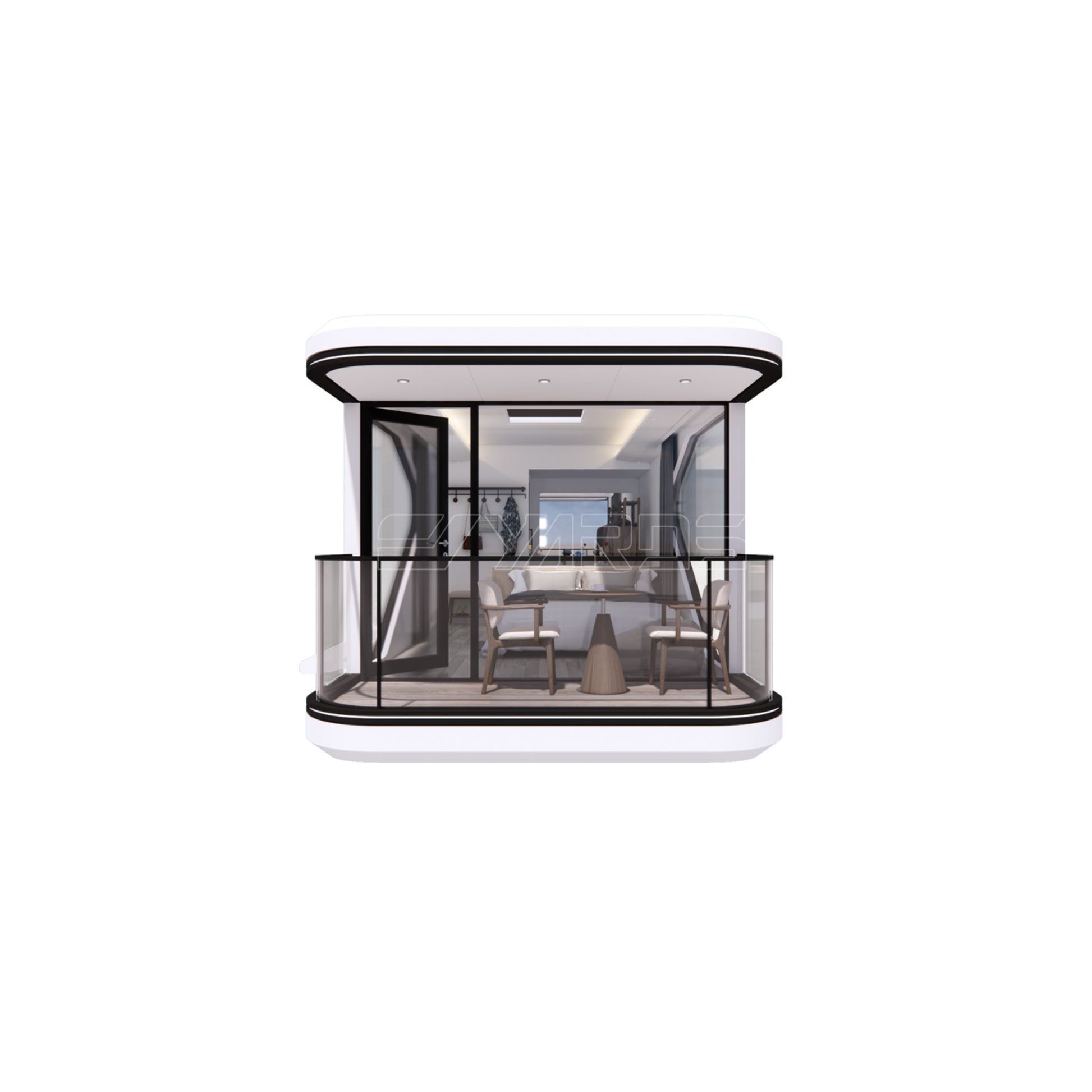

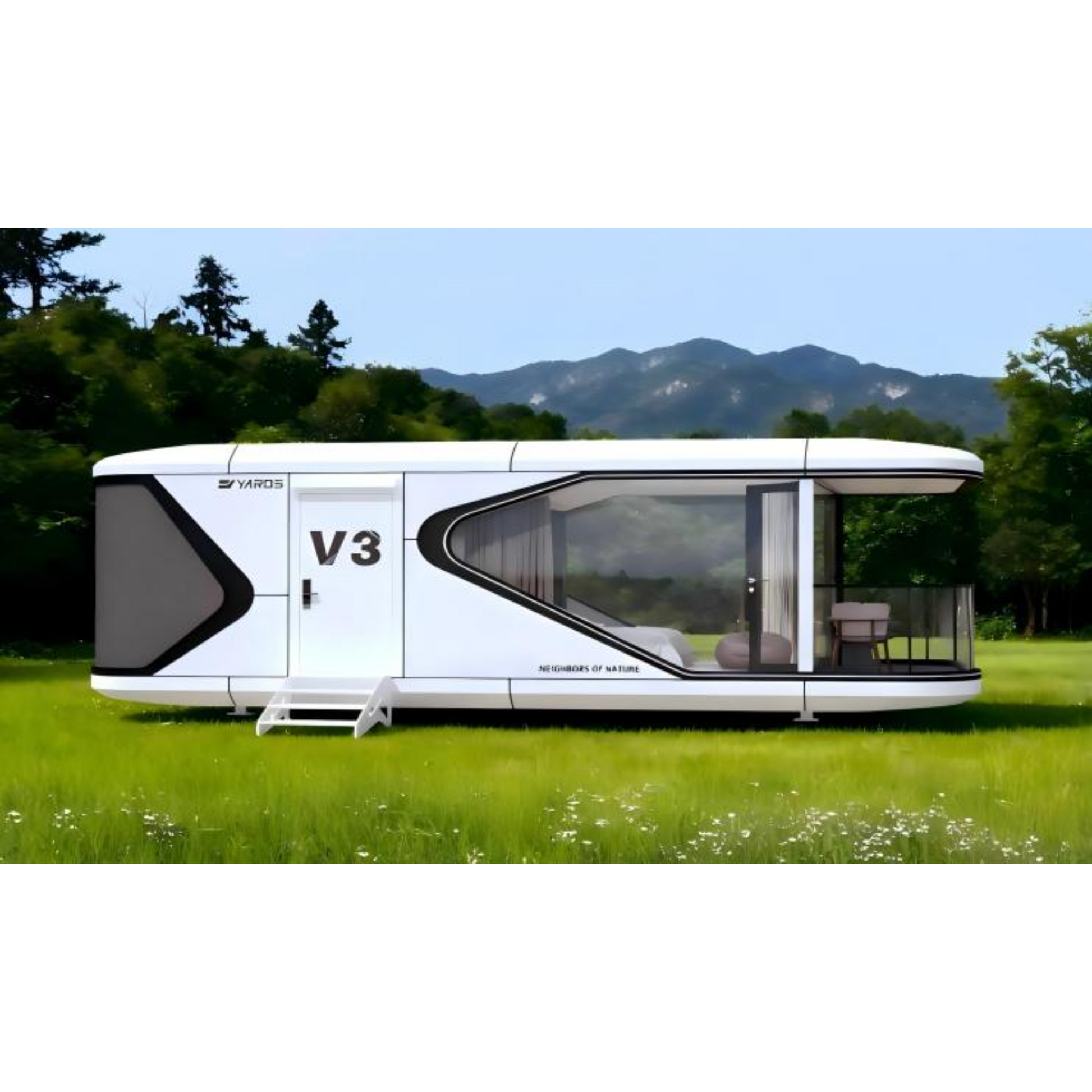

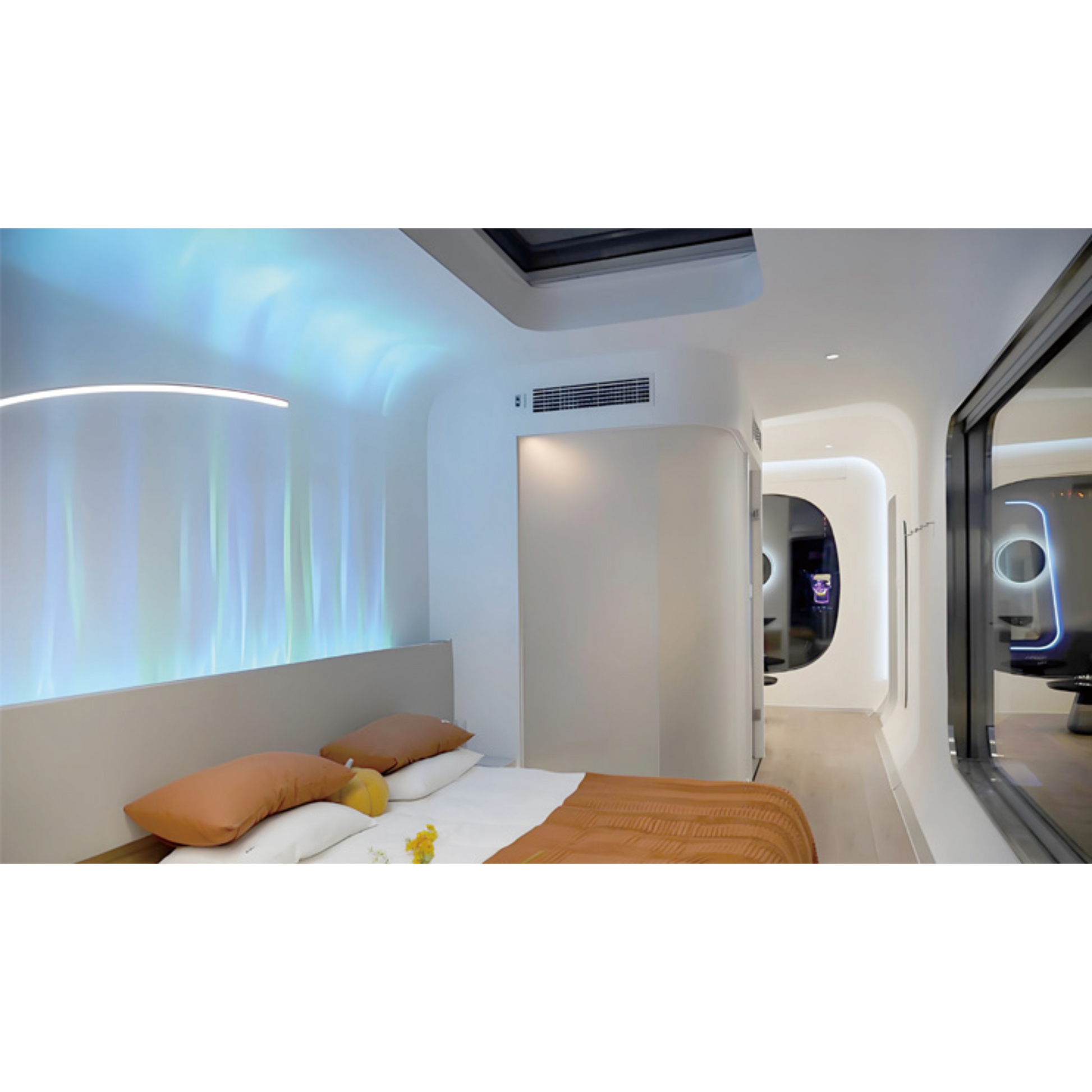

The V3 Luxury Tiny House is a sleek one bedroom modular home designed for guests who want a refined private suite in a compact footprint. With a bright bedroom, comfortable living space, and a private bathroom, the V3 works perfectly as a deluxe cabin, guest house, or high end glamping unit.

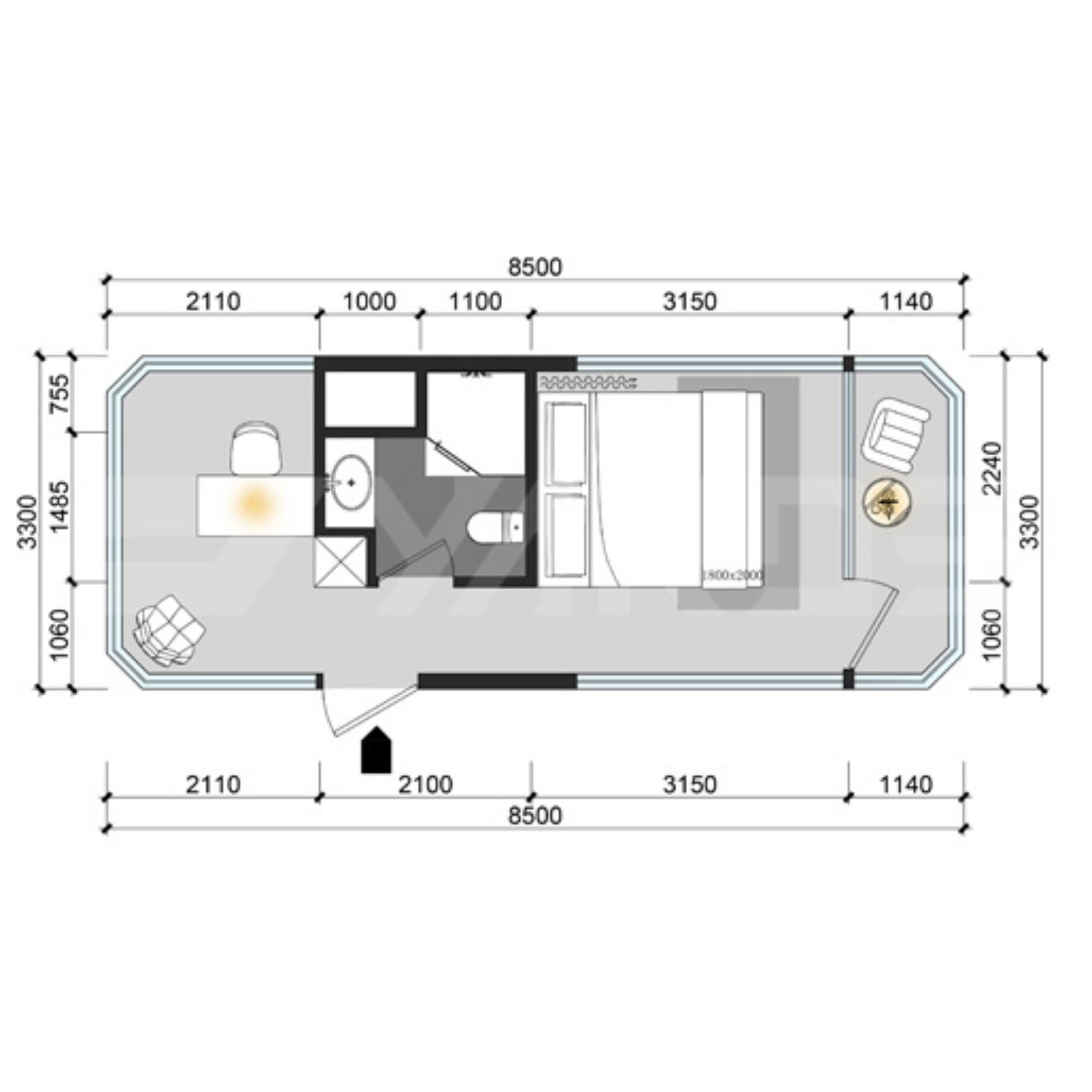

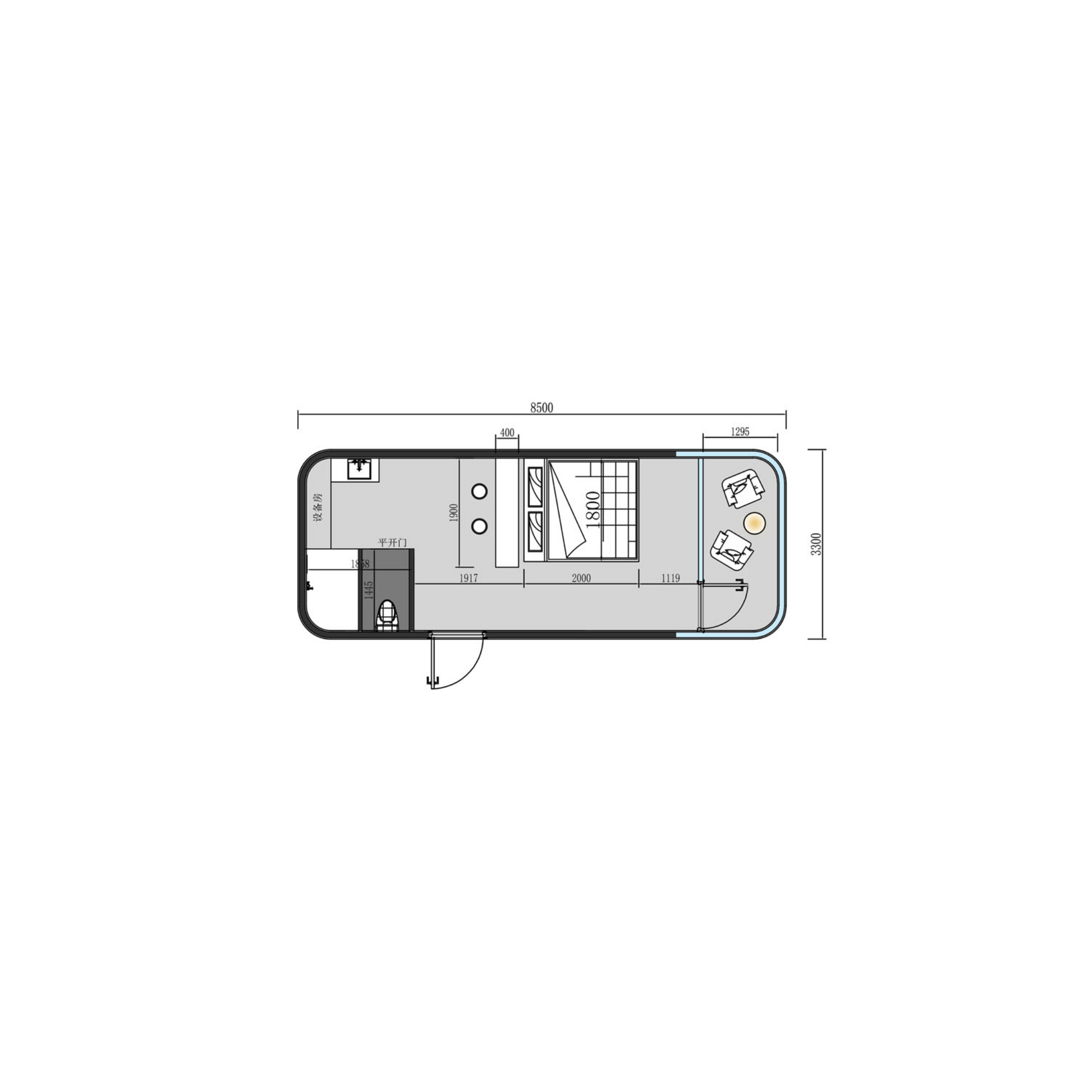

The structure measures approximately 27.9 ft × 10.8 ft (8.5 m × 3.3 m) with a floor area of about 301 ft² (28 m²), making it easy to position on tight sites while still feeling spacious and comfortable.

Perfect for eco-resorts, boutique rentals, lakeside or mountain retreats, or anyone looking for a turnkey one bedroom tiny home.

What is Included

The V3 is delivered as a finished structural unit with integrated systems and factory installed interior and exterior materials.

Structural System

• 100 mm × 100 mm × 5 mm hot dip galvanized steel main frame
• 3 mm aviation grade aluminum roof panels with fluorocarbon paint
• Integrated waterproof heat insulation filling in the roof build up
• 3 mm aerospace aluminum wall panels with fluorocarbon paint
• Waterproof and thermal insulation filler inside the wall assembly

Interior and Exterior Finishes

• SPC waterproof interior flooring
• Carbon crystal wall panels with modeled ceiling details
• Aluminum composite interior wall panels in selected areas
• Aluminum insulating glass with thermal break (broken bridge) for doors and windows
• Low-E insulated glass curtain wall for excellent light and energy performance

Included Functional Systems

• Air conditioning system
• Plumbing system with factory pre installed piping to the bathroom and wet areas
• Electrical and lighting system with installed fixtures

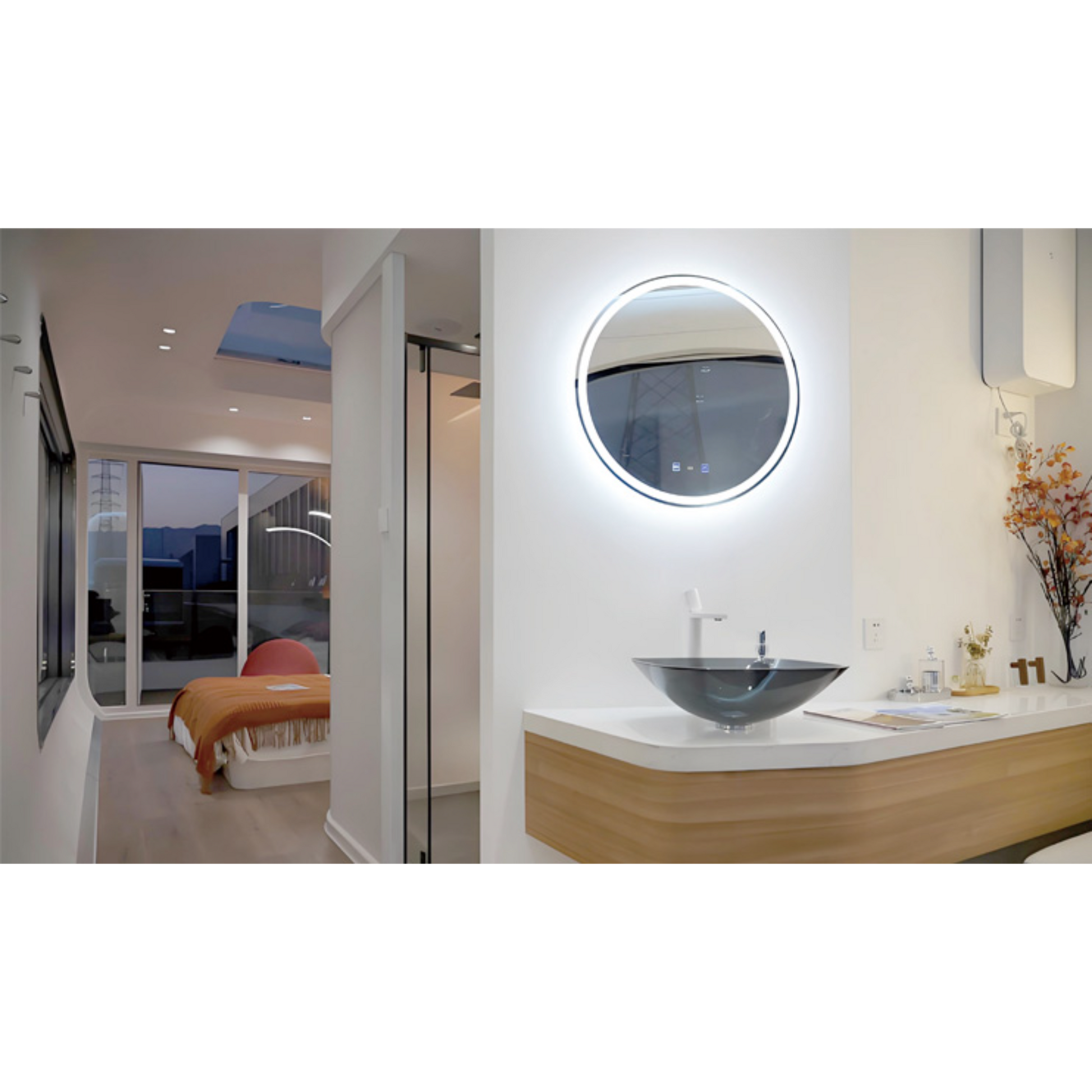

• Branded bathroom set, typically including: Toilet, Shower, Sink and vanity
• Base connections and space allocation for a compact kitchenette or wet bar, ready for your appliances and cabinetry
• Sound insulation performance of approximately 45 dB

Specifications

Not Included

• Interior loose furniture such as bed, sofa, tables, chairs, and decor
• Exterior decks, platforms, pools, landscaping, and other site works shown in sample images
• Kitchen appliances and custom cabinetry finishes unless otherwise specified in your final order

Images are for illustration only and may show optional layouts and furniture packages. Final delivered configuration depends on your chosen options and project requirements.

Optional Add Ons

(Contact us to customize your order.)

• Exterior wooden platforms and deck systems for lakeside, forest, or desert locations
• Interior layout adjustments and partition tweaks within the one bedroom configuration

Optional Upgrades

(Available upon request from the manufacturer.)

• Fresh air and ventilation system
• Electric underfloor heating
• Whole house soft furnishings and furniture package
• Intelligent theater and media system
• Whole house smart home system

These upgrades allow you to position the V3 anywhere from a sleek premium cabin to a fully equipped smart tiny home.

Installation and Platform Notes

V3 units are designed as modular structures that can be installed on either a reinforced concrete slab or an engineered wooden platform, depending on site conditions and local regulations. We recommend sourcing platforms and foundations locally to reduce shipping costs and to meet local building standards.
Please note:

• Installation services are not included in the base price.
• Detailed structural drawings and connection information are provided, and we recommend hiring experienced local builders or contractors to complete the foundation and installation.
• Customers are responsible for arranging suitable lifting equipment or a forklift at the delivery site to safely unload the house module.
